All files have the same layout (same number of columns and data types).
They all have the same number of sheets.

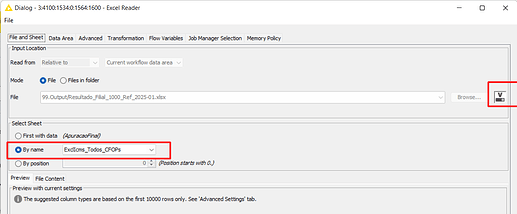

I’m iterating over a specific sheet.

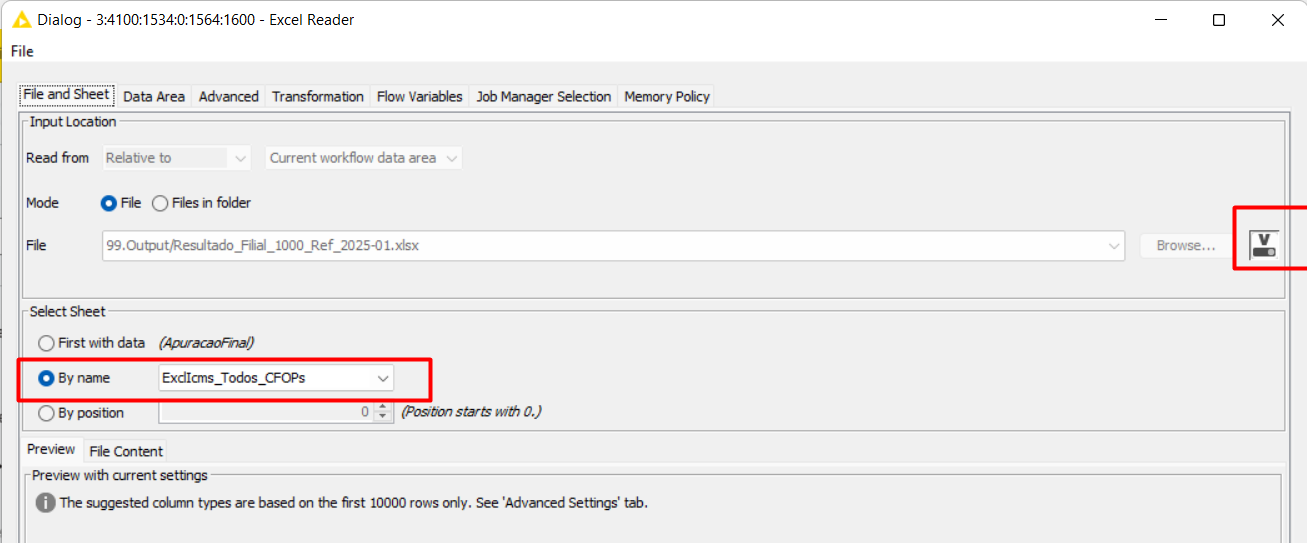

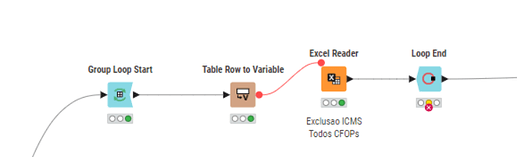

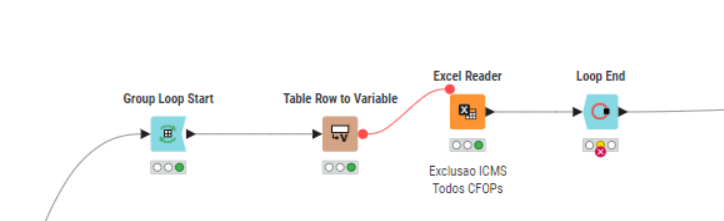

I’m using a flow variable for each file within the Group Loop.
In the first iteration, everything works fine.

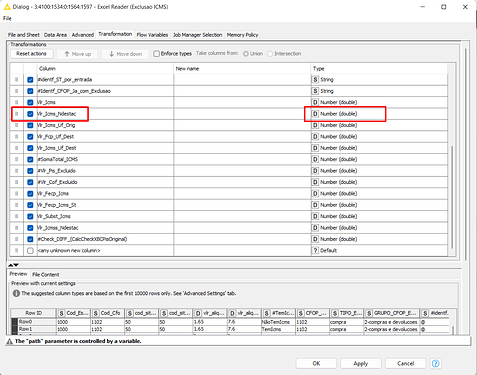

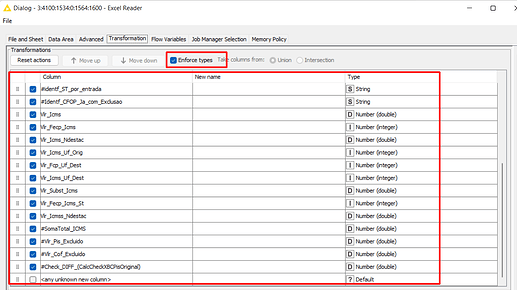

(See screenshot.)

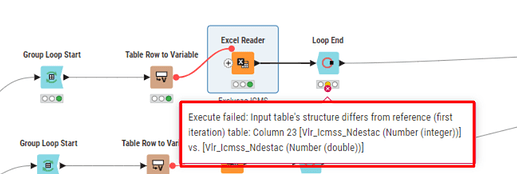

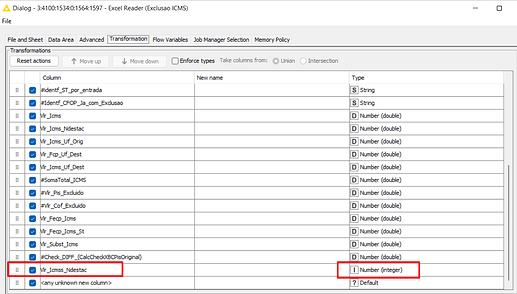

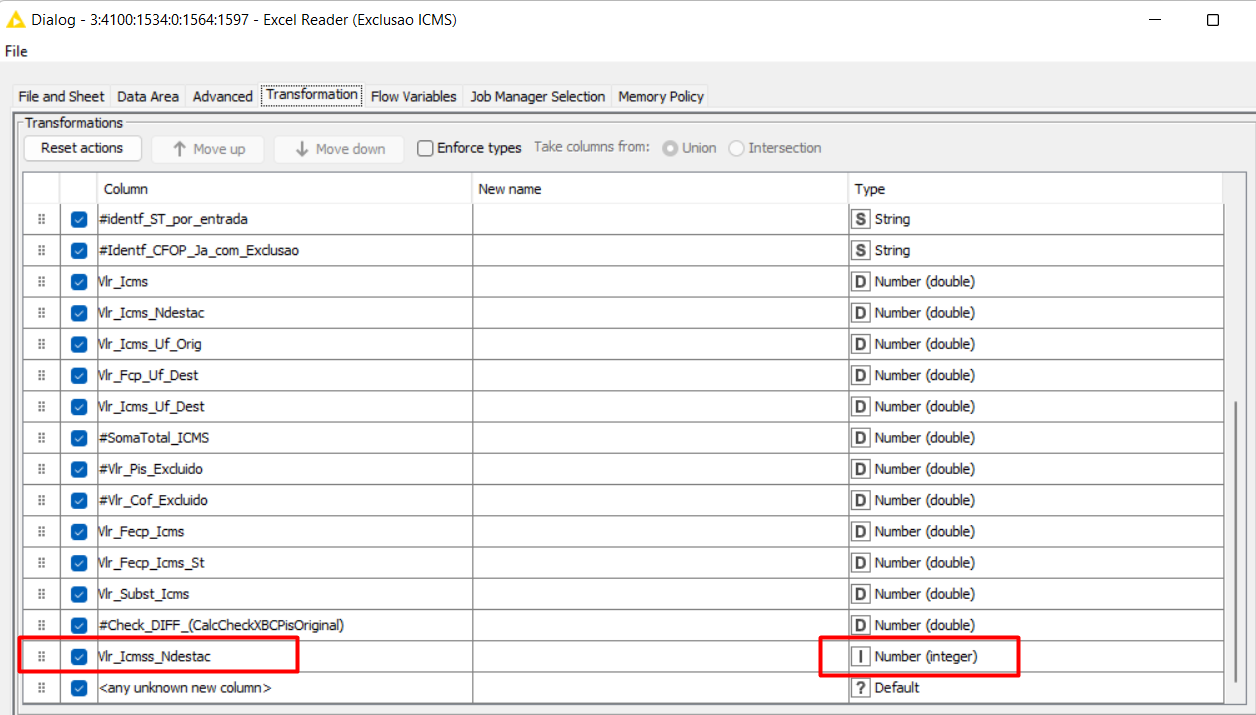

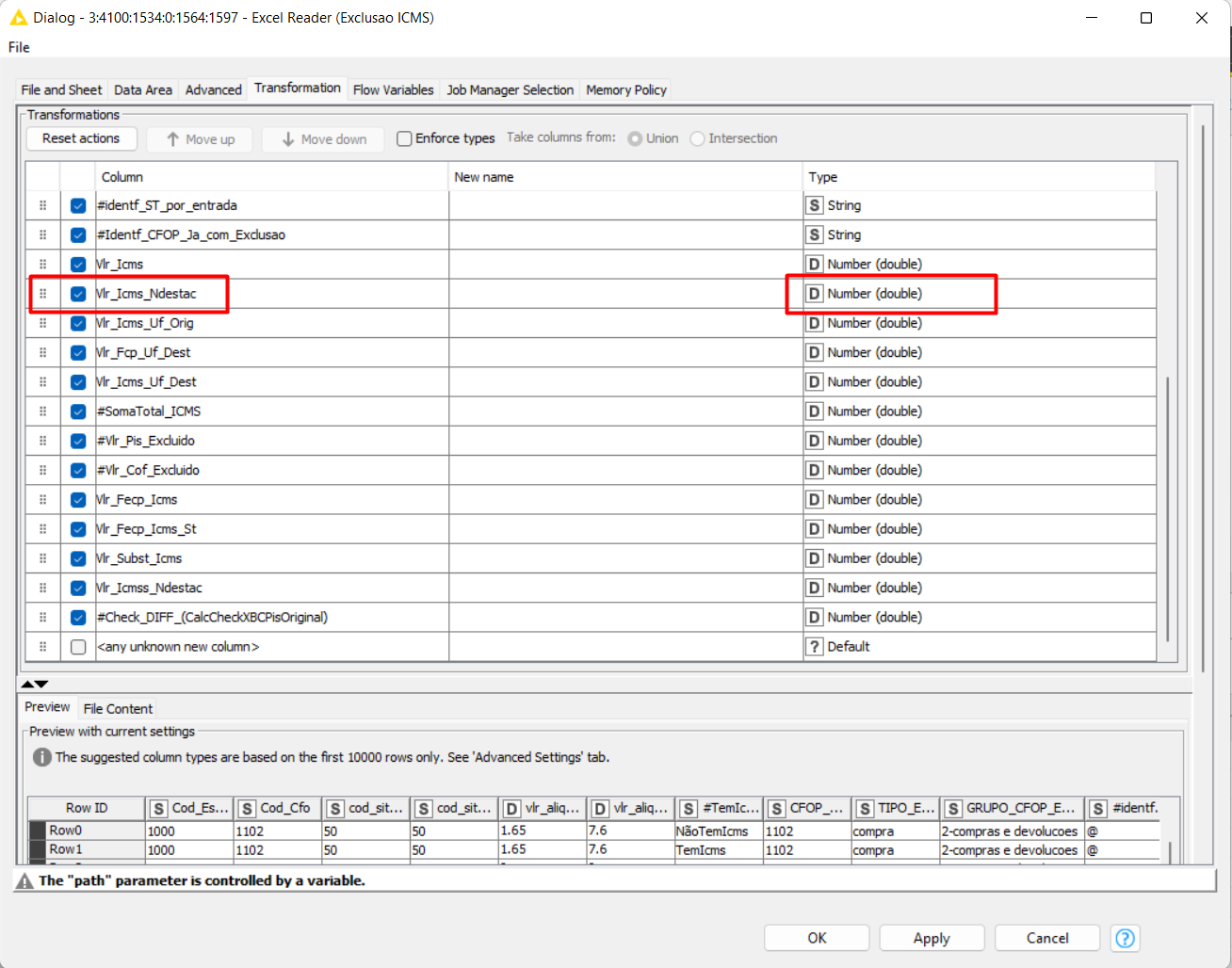

In the second or later iterations, an error may occur, stating that the data type of a column in the first file is different from the data type in the next file being iterated.
Have you considered changing the “Mode” from “File” to “Folder” and to simply read all the files at once?
If column structure is the same and sheet names are always the same you can skip the initial loop for reading the data (you can configure the node so that the file path is added to each row - so if you need to process each file’s content individually you can later iterate over that file path column using a group loop)
I tried to recreate your scenario different ways, however did not manage to replicate the error…
I tried to start with a file that has only integers in the column and transform to double and then have a mix of files with only int, only double or mix of both.
Also started with a double only column (w/o touching transformation tab) and then using the other files - also no issue…
Here’s the workflow both with the loop and the read all in one…
Yes, I had considered that, but I decided to do it this way because some files were large, so I thought it would be better to process them one by one (even though, in the end, the Loop End concatenates them all together).
About the issue
It’s really difficult to simulate the error.
I also don’t know why it happens.
The most frustrating part is that I built this workflow for a friend, and she was running it but kept complaining about this error.
I tested it on my machine, and there was no error. Then, I exported it to her, and on her machine, the error appeared.
I went crazy.
But I ended up solving it with a simple strategy:

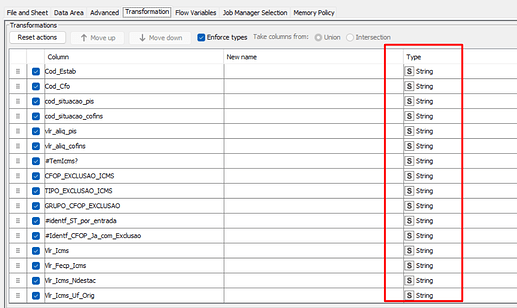

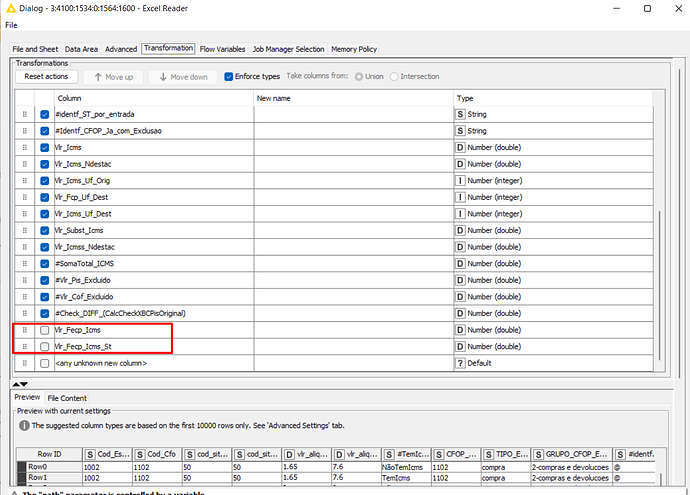

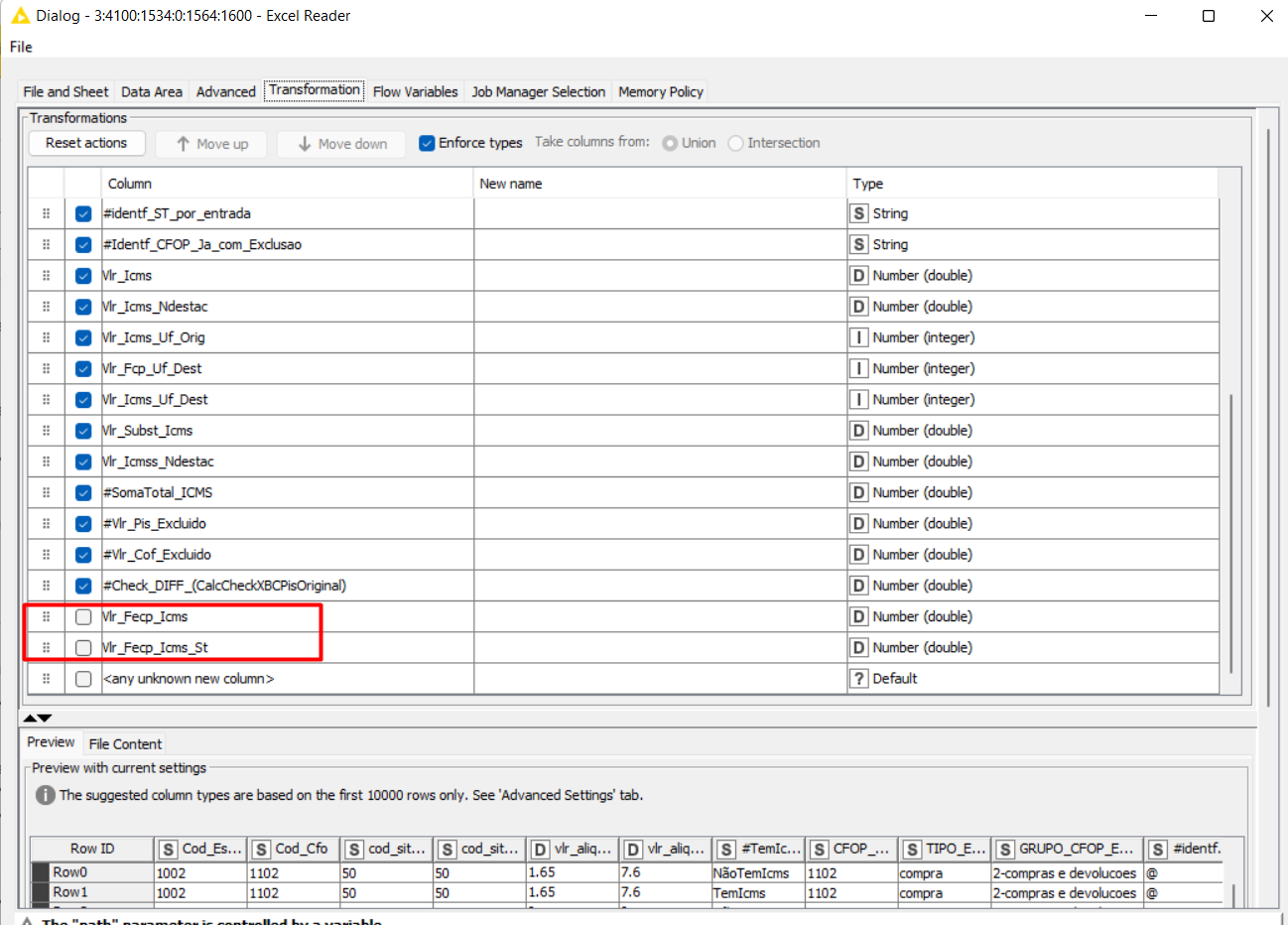

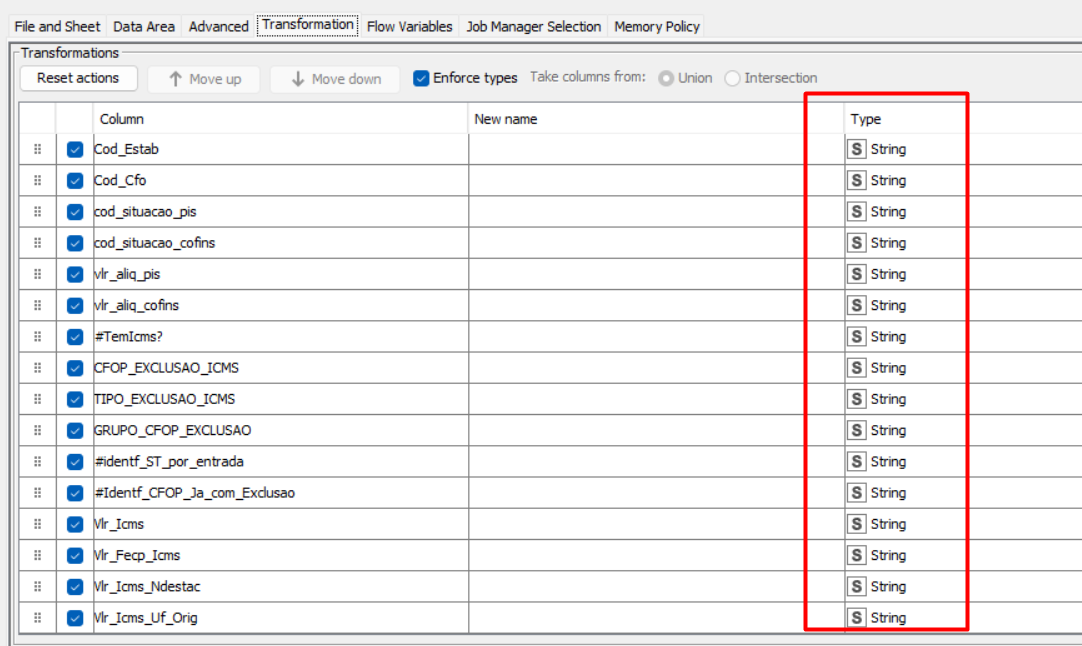

I went to the Transformation tab in the Excel Reader node and changed everything to String. This way, the Excel Reader won’t throw an error due to column type issues.

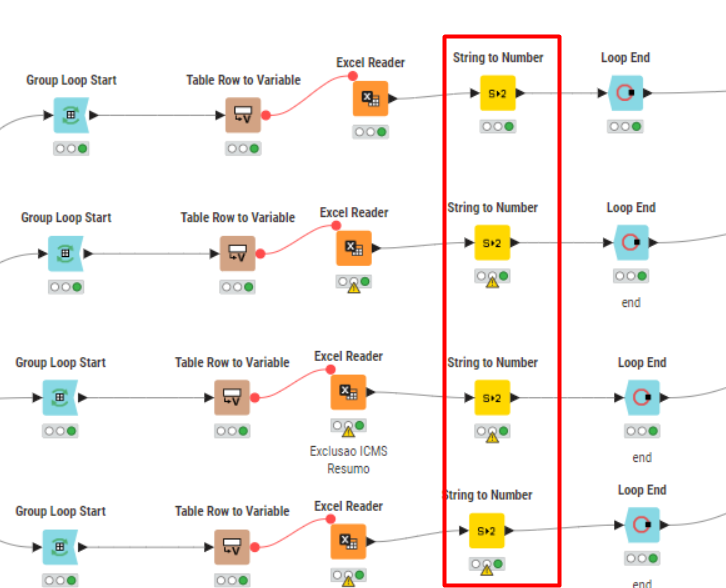

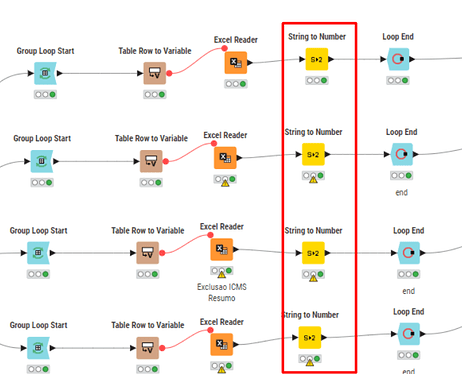

Before reaching the Loop End (but it could also be after it), I used the String to Number node.
In short, I treated everything as String first and only changed the Data Type after the Excel Reader had processed the files.

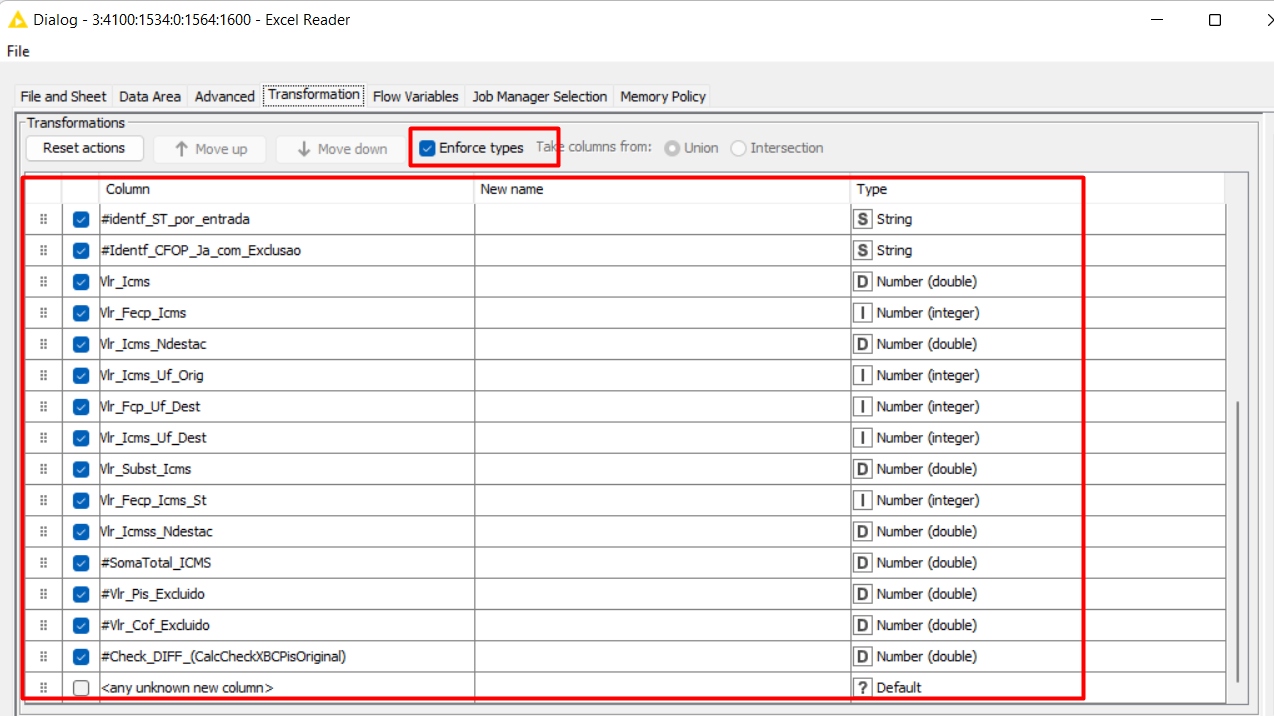

See the screenshot.
I believe the error was caused by the following scenario:
Imagine that in the first file, there is a column where the numbers are "0" or "1" to "9".
In this case, the Excel Reader will consider the column as Integer.
However, in the second file, imagine that the same column contains at least one value like "10.1".
Then, the Excel Reader will treat it as Double.
At this moment, I believe the column “jumps” to the end and triggers a Data Type error.
If I check the “Change table specifications” option in the Loop End, it wouldn’t be ideal because the columns that “jumped” to the end would stay there, changing the order of colums dinamic.
This isn’t what I want because of this issue—each file could be different depending on which column caused the error.
Another functionality I couldn’t find was an option in the Excel Reader node to not use the first row as a header.
If I could disable that, the columns would automatically be treated as String, eliminating the need to manually force it in the Transformation tab.
Since I couldn’t find such an option, I had to manually set everything to String and then convert it back with String to Number.
In the end, the result was satisfactory, and the error no longer occurred.
On the forum, I found a post from 2020 where someone complained about the same issue.
I’ll send it to you so you can check it out if you’re curious.
Awesome that you solved it! The „treat everything as string and then convert“ I had in mind, too but it’s more of a last resort :).

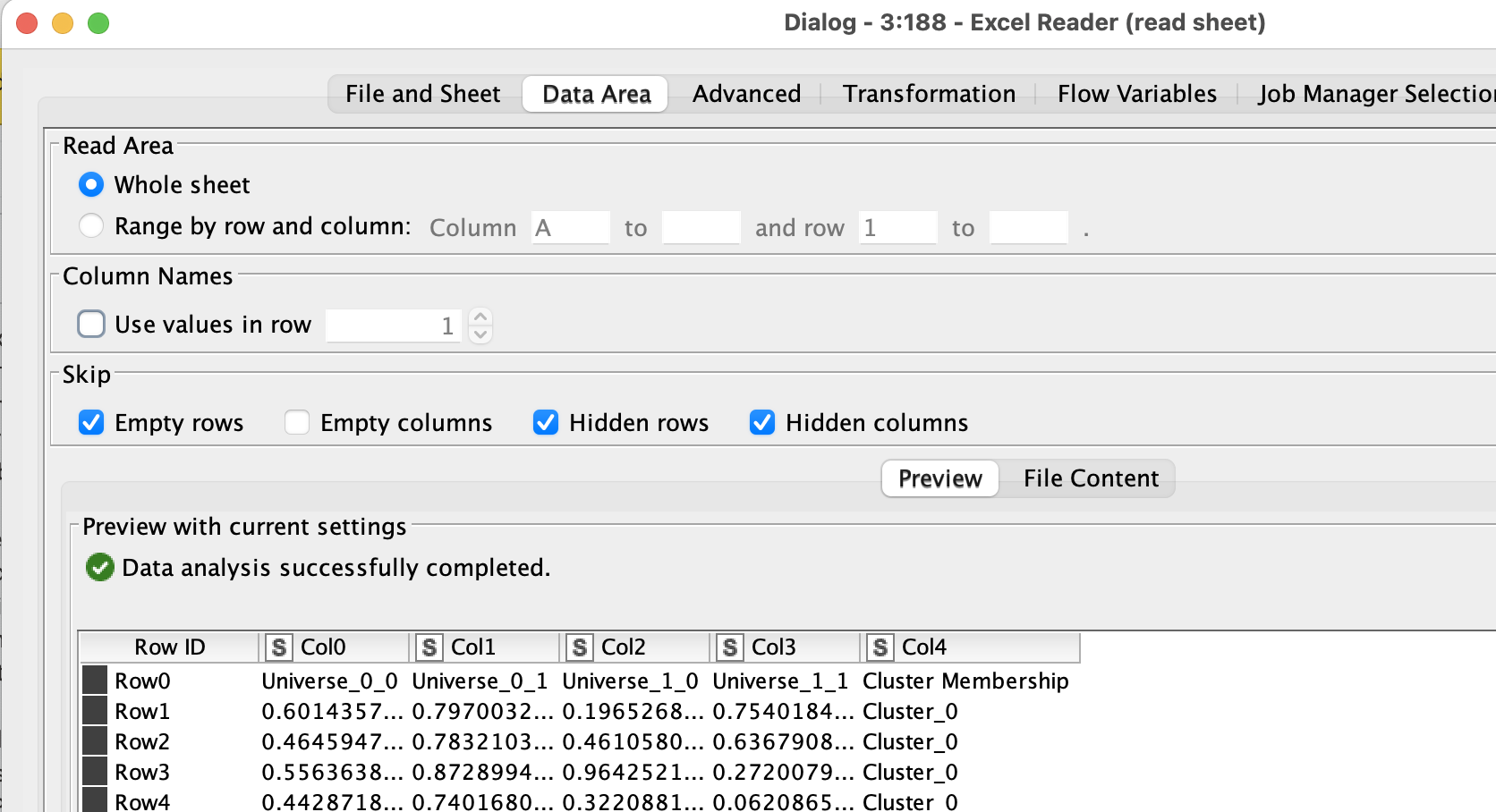

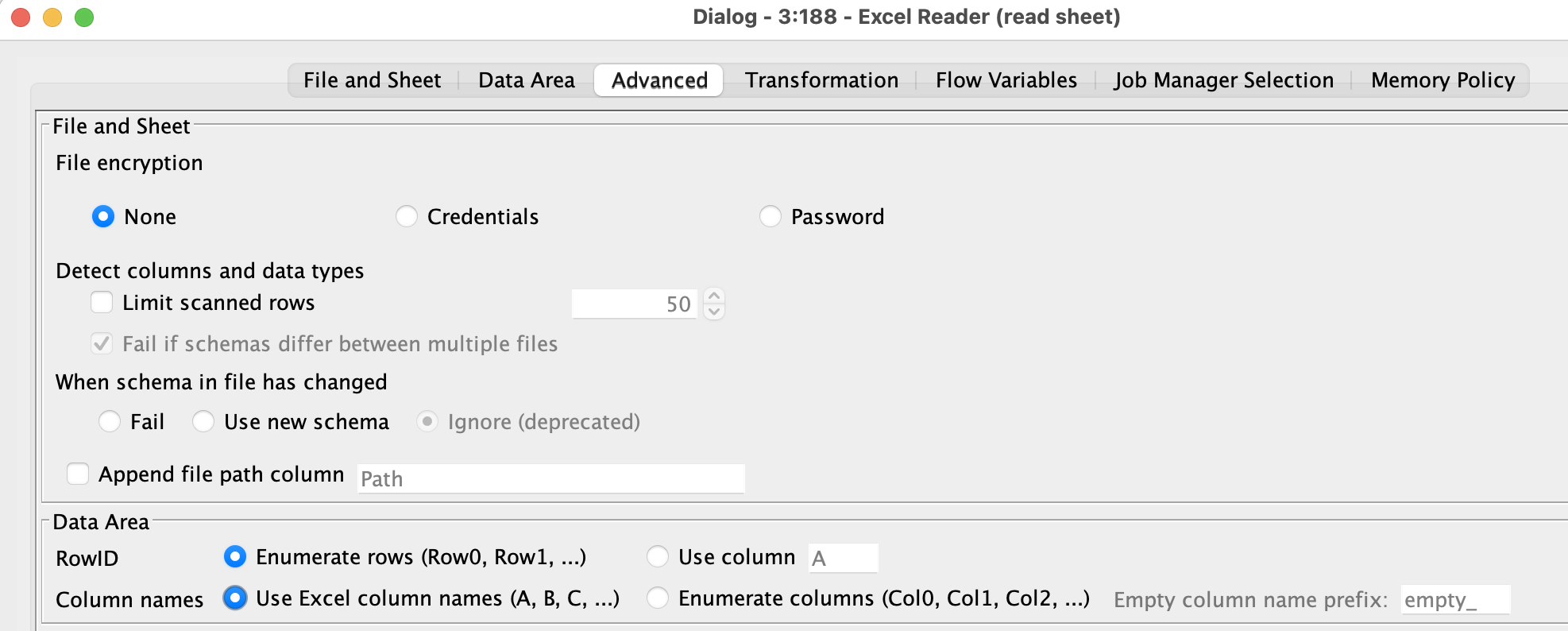

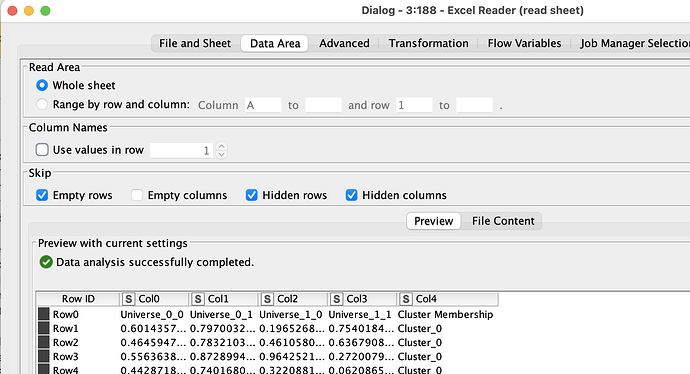

I think in data area tab there’s a setting where you can choose which row to take as column headers. I think you can also uncheck that so then you get default excel headers A, B, C etc and your first row is just part of the data…
I agree with what you suspect as the cause of error and that is what I tried to replicate ( therefore trying different scenarios for the column in the first file…)

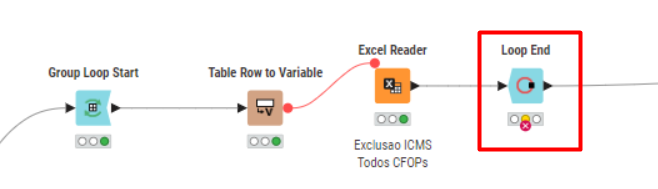

Additionally Loop End node has option Allow variable column types which helps in this case and in general when looping and don’t want to know to much about column types.
From node description: Allow variable column types “If checked, the loop does not fail when the column types between different table iterations change. The resulting column will have the common super type of the different column types.”
