Greetings once again! Another issue with reporting from MOSAIQ in Oncology that I can’t seem to crack.
I have a report that pulls tumour markers (currently about 13 in total) status in cancers (e.g., PD-LI = 10%, ROS1 = normal). The report has a column called “Test” which contains the terms “PD-L1” and “ROS1”, a column to identify the patient, a column with the date of the test, and a column that provides the result (“10%”, “normal”). So a simple structure.
I want to write out all the PD-L1 data into a single Excel spreadsheet (“PD-L1.xlsx”) and all the ROS1 data into another Excel spreadsheet (“ROS1.xlsx”). I know that I can do that with 13 separate Row Splitter functions, but I can also do it with Group Loop Start/Loop End function.
Here is my current arrangement (there have been many previously!)
Group Loop Start selects “Test”. String Manipulation (Variable) selects “string($${IcurrentIteration}$$)”. Excel Writer has the path “P:\LungCancerMarkers\ + $${IcurrentIteration}$$ + .xlsx” and the created variable (none to choose) as IcurrentIteration.
While it runs, only one file is produced, so it’s obviously not working.
Apologies once again for being so inept, but can you help me please? Thanks in advance,
That question is, I believe, the crux of the problem! I have looked through various similar problems but I think I am missing the correct transfer.
Here is a section of the report with the data:
PatientID
Test
TestDate
Result
69371
p16
2021-07-16
--
75750
SUVn_max
2020-02-17
2.8
77687
PD-L1
2020-06-16
1%
77687
SUVp_max
2020-06-23
12.1
76988
PD-L1
2020-04-23
95%
79466
PD-L1
2020-10-23
20%
76944
PD-L1
2020-04-28
3%
76000
PD-L1
2020-01-13
70%
76463
PD-L1
2020-03-06
5%
81857
PD-L1
2021-06-16
99%
73531
SUVn_max
2019-07-31
4.8
Hopefully this is helpful. My role is as an oncologist and while I am savy in IT gneralities, I am not in coding level issues, not without a lot of hand holding!

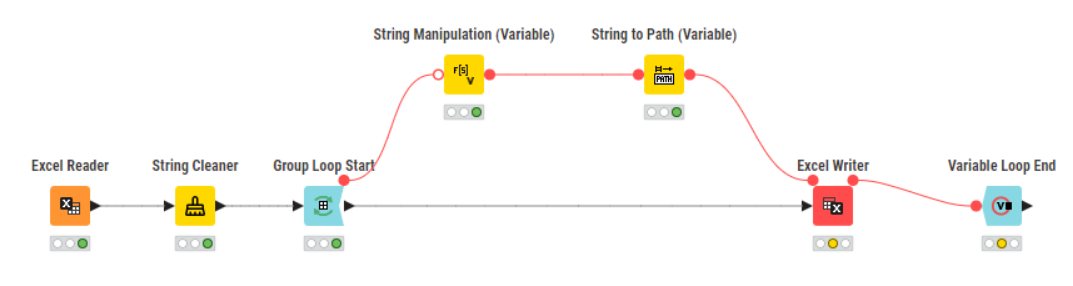

I have made some alterations, and I can see recursive looping in the process (flashing boxes), BUT it is not writing out separate files, and there is an error message.

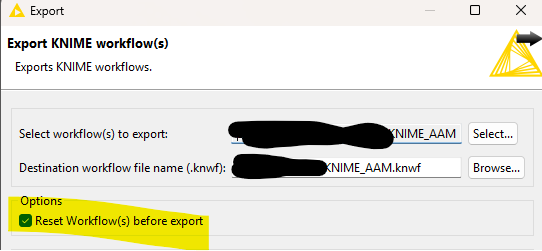

I have uploaded the current process as it stands. Data included, all deidentified.

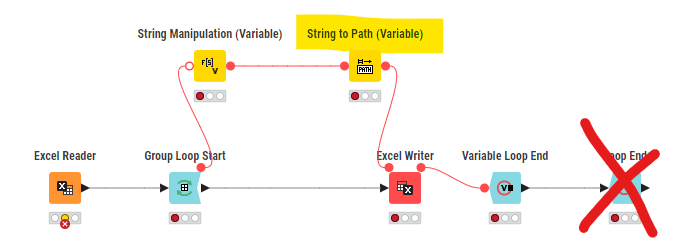

Thank you for the reply. I have made the changes you suggest and remade the workflow. I see the sense in the changes you have suggested, however, when it runs, I am still getting a single file, not the 13 or so that I was hoping for. I suspect that this may be buried in the configurations.
As I am using KNIME on Linux at home, I can’t see what you did to Excel Writer (the variable assignation isn’t there AFAICanSee), but I’ll look closer when I return to work.
