Month to Month calculation problem

KNIME Analytics Platform
1

Hello all

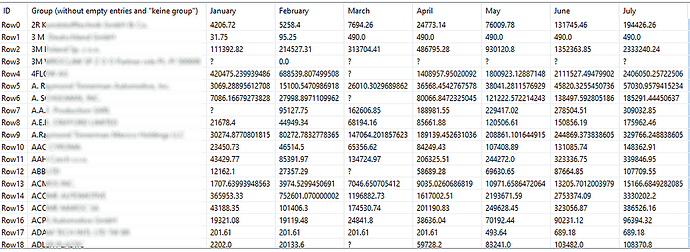

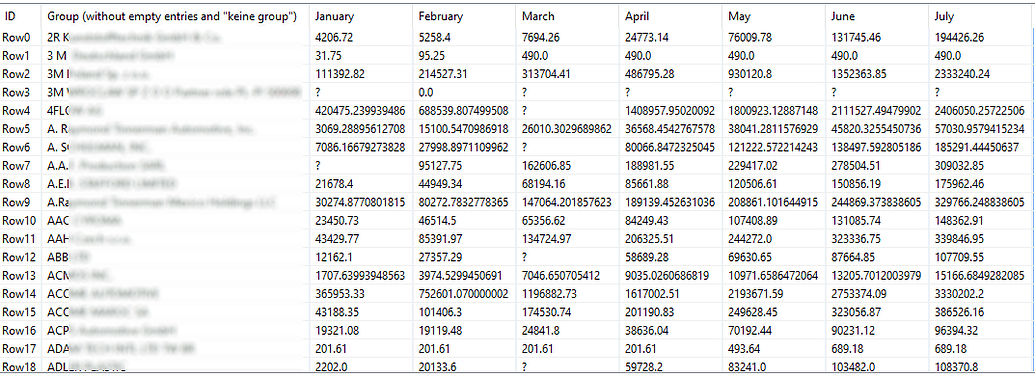

Got stuck on a problem. After some initial processing, my data now looks like this:

image1035×378 106 KB

Now comes my issue. I need to calculate the percentage change from January to February, from Feb to March and so on.
I can obviously do the calcs with the Math Formula node, but I need to make it work all year long, and those months don’t exist yet.

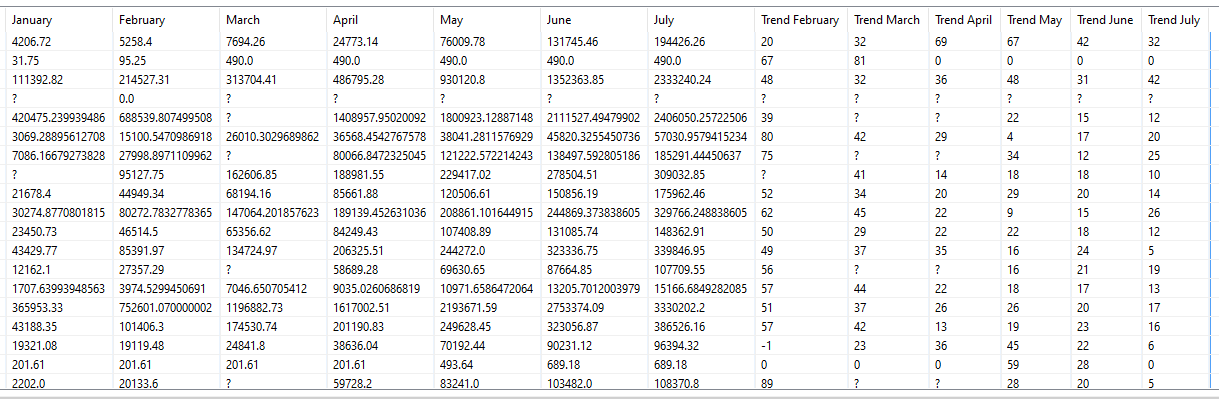

Sample of math formula output:

image1219×399 19.3 KB

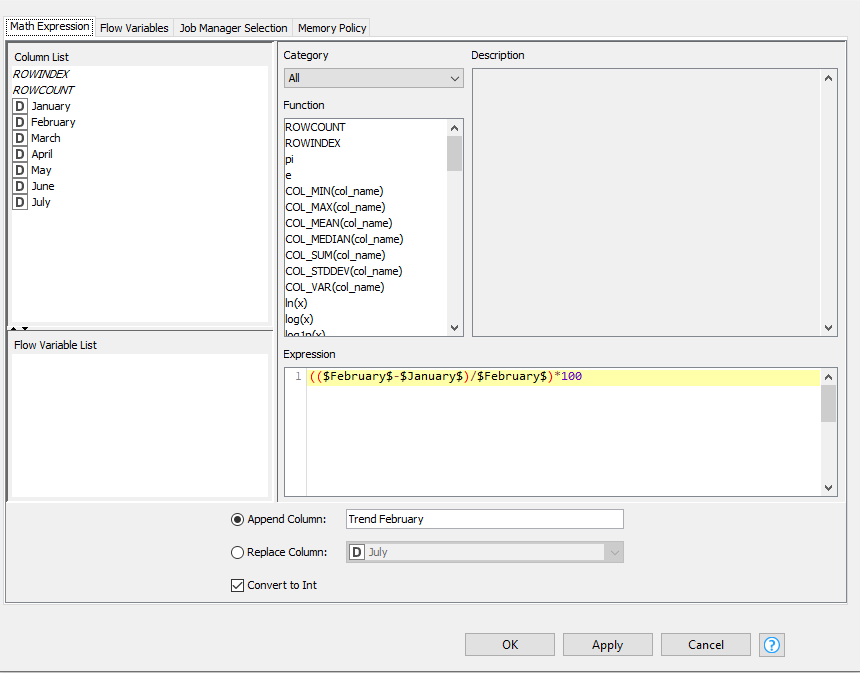

The formula is a simple Perc calc:

image860×673 17.8 KB

Any help in solving this is greatly appreciated, currently drawing a massive blank.
Tried Transposing, Unpivoting, Multi column Math … I couldn’t make any of them do what I need.
Thanks.

2

It would be a lot easier to help if you would provide sample data. My gut feel is transposing and then using the Expressions node will work.

3

Hi @Vikkykaushal

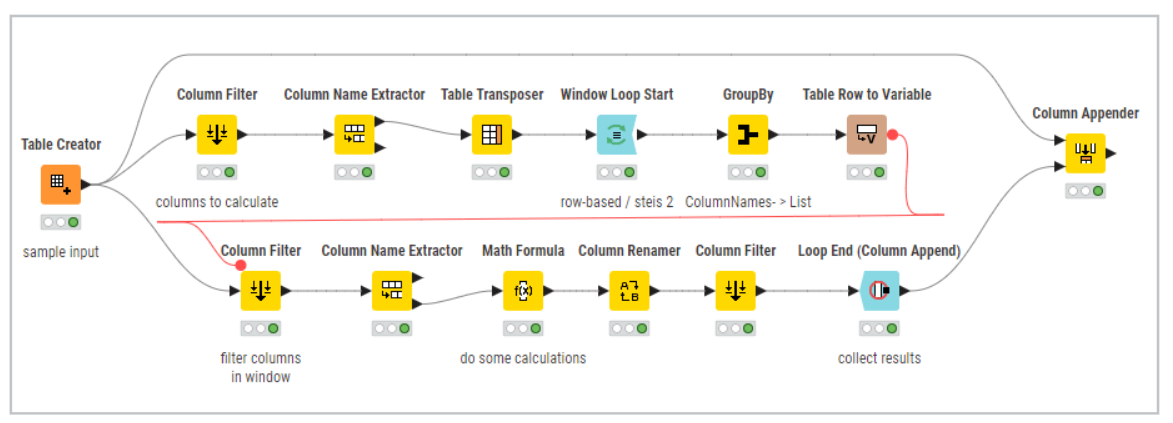

Welcome to KNIME Forum. I created this wf month_to_month_calculation.knwf (96.7 KB) . It uses a Window Loop with a window of 2 and a stepsize of 1 to loop over the two columns to calculate.

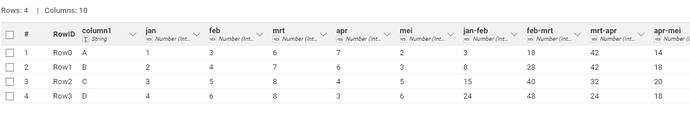

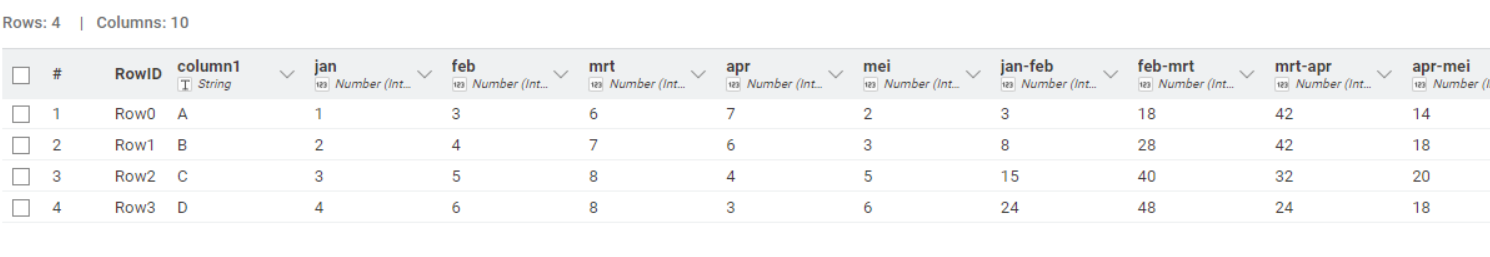

afbeelding
afbeelding1173×423 97.7 KB
.

afbeelding
afbeelding1490×257 56.5 KB

Gr. Hans

2 Likes
4

you can always create blank columns if you know they gonna “appear” sometime in the future.
you can also address columns by their index.

given we are approaching years end, I would also spend a bit of time checking, how years end are being handled:

  • everything consecutive in one worksheet? then expect people to start renaming columns or even re-ordering them eventually
  • everything in one file? expect additional worksheets to appear
  • split per year? then you may need to pull December of PY to calculate the difference for January CY
1 Like
