# Sum horizontally from left to right until I meet a 0

Hello,
I need to sum starting from left only if the most left double column is >0. If the condition is met I need to move right and stop only when I find a 0.

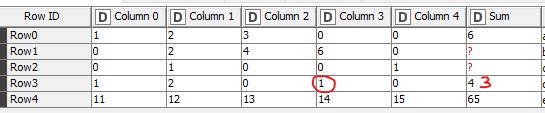

In the picture below I show what I would like to sum adding the total in a new column.
I don’t know where to start. The number of column can vary in time,

See this wf sum_horizontally.knwf (30.3 KB).

gr. Hans

3 Likes

Hello @Paolodam
If I understood properly the logic of the challenge, and your size data affords row looping processing. This can be a valid solution:

20230317_sum_horizontally_conditional_v0.knwf (70.7 KB)

Using the sample data from previous @HansS ’ post.

BR

P.S.-

The number of rows as variable fix the length of the listed values (number of columns), by controlling the window length in moving aggregation node.

2 Likes

Hello Hans, thank you for your suggestion. It works but it evaluates “0” only on first column. I have to stop the sum also if I encounter another “0” moving right. If i add a 1 in your table the result I want is still 3 and not 4, because in column 2 there’s a “0”. The solution of @gonhaddock works just fine.

1 Like

Thank you a lot. I see your wf works perrfectly, I have understood the logic but I’m not sure exactley how the moving aggragation works.

1 Like

Hello @Paolodam and sorry for my late answer.

The Moving Aggregator is basically a trimmed operator. It operates back or forward, in a predefined moving window length.

In your solution the window length is controlled with a variable (the total table length from Extract Table Dimensions) and the operator is ‘Product’. This means it will operate the accumulated product for all the list array (column); therefore when there is a 0 in the array, the result for the rest of the array will be 0.

Afterwards we convert this string to a logic factor ‘0’ == FALSE (0) and ‘<> 0’ == TRUE (1) aiming to process the conditional values table; this can be improved in the workflow because as all the samples were positives, then the rule TRUE is defined from ‘>0’ .

I hope this helps on clarifying
BR

2 Likes
