Can't create workflow when launching knime in eclipse

I follow this link to create new node extension. I do the things according to documentation but when I want to run the sample node (number formatter) I get into trouble and I can’t create workflow to test the NumberFormatter node.

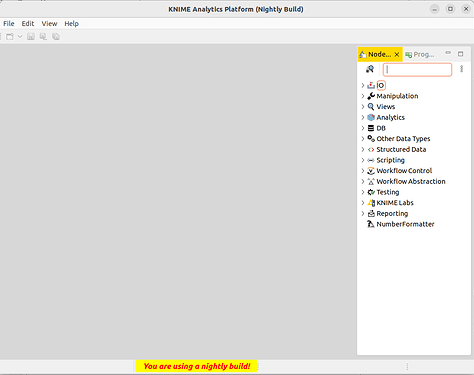

Here is the opened dialog for Knime Analytics platform.

And here is the exception I got when trying to create new workflow:

!ENTRY org.eclipse.ui 4 0 2023-02-26 12:42:58.780
!MESSAGE Unhandled event loop exception
!STACK 0
java.lang.IllegalArgumentException:
	at org.eclipse.core.runtime.Assert.isLegal(Assert.java:66)
	at org.eclipse.core.runtime.Assert.isLegal(Assert.java:50)
	at org.eclipse.e4.ui.internal.workbench.ModelServiceImpl.findElementsRecursive(ModelServiceImpl.java:175)
	at org.eclipse.e4.ui.internal.workbench.ModelServiceImpl.findElements(ModelServiceImpl.java:437)
	at org.eclipse.e4.ui.internal.workbench.ModelServiceImpl.findElements(ModelServiceImpl.java:418)
	at org.eclipse.e4.ui.internal.workbench.ModelServiceImpl.findElements(ModelServiceImpl.java:423)
	at org.eclipse.e4.ui.internal.workbench.PartServiceImpl.addPart(PartServiceImpl.java:1013)
	at org.eclipse.e4.ui.internal.workbench.PartServiceImpl.addPart(PartServiceImpl.java:1219)
	at org.eclipse.e4.ui.internal.workbench.PartServiceImpl.showPart(PartServiceImpl.java:1243)
	at org.eclipse.ui.internal.WorkbenchPage.busyOpenEditor(WorkbenchPage.java:3207)
	at org.eclipse.ui.internal.WorkbenchPage.lambda$9(WorkbenchPage.java:3097)
	at org.eclipse.swt.custom.BusyIndicator.showWhile(BusyIndicator.java:74)
	at org.eclipse.ui.internal.WorkbenchPage.openEditor(WorkbenchPage.java:3095)
	at org.eclipse.ui.internal.WorkbenchPage.openEditor(WorkbenchPage.java:3065)
	at org.eclipse.ui.internal.WorkbenchPage.openEditor(WorkbenchPage.java:3048)
	at org.knime.workbench.explorer.view.actions.NewWorkflowWizard$2.run(NewWorkflowWizard.java:323)
	at org.eclipse.swt.widgets.RunnableLock.run(RunnableLock.java:40)
	at org.eclipse.swt.widgets.Synchronizer.runAsyncMessages(Synchronizer.java:132)
	at org.eclipse.swt.widgets.Display.runAsyncMessages(Display.java:5000)
	at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:4480)
	at org.eclipse.jface.operation.ModalContext$ModalContextThread.block(ModalContext.java:166)
	at org.eclipse.jface.operation.ModalContext.run(ModalContext.java:368)
	at org.eclipse.jface.wizard.WizardDialog.run(WizardDialog.java:1033)
	at org.knime.workbench.explorer.view.actions.NewWorkflowWizard.performFinish(NewWorkflowWizard.java:219)
	at org.eclipse.jface.wizard.WizardDialog.finishPressed(WizardDialog.java:832)
	at org.eclipse.jface.wizard.WizardDialog.buttonPressed(WizardDialog.java:472)
	at org.eclipse.jface.dialogs.Dialog.lambda$0(Dialog.java:619)
	at org.eclipse.swt.events.SelectionListener$1.widgetSelected(SelectionListener.java:84)
	at org.eclipse.swt.widgets.TypedListener.handleEvent(TypedListener.java:252)
	at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:89)
	at org.eclipse.swt.widgets.Display.sendEvent(Display.java:5794)
	at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1529)
	at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:5025)
	at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:4477)
	at org.eclipse.jface.window.Window.runEventLoop(Window.java:823)
	at org.eclipse.jface.window.Window.open(Window.java:799)
	at org.eclipse.ui.internal.handlers.WizardHandler$New.executeHandler(WizardHandler.java:263)
	at org.eclipse.ui.internal.handlers.WizardHandler.execute(WizardHandler.java:283)
	at org.eclipse.ui.internal.handlers.HandlerProxy.execute(HandlerProxy.java:283)
	at org.eclipse.ui.internal.handlers.E4HandlerProxy.execute(E4HandlerProxy.java:97)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at org.eclipse.e4.core.internal.di.MethodRequestor.execute(MethodRequestor.java:58)
	at org.eclipse.e4.core.internal.di.InjectorImpl.invokeUsingClass(InjectorImpl.java:317)
	at org.eclipse.e4.core.internal.di.InjectorImpl.invoke(InjectorImpl.java:251)
	at org.eclipse.e4.core.contexts.ContextInjectionFactory.invoke(ContextInjectionFactory.java:173)
	at org.eclipse.e4.core.commands.internal.HandlerServiceHandler.execute(HandlerServiceHandler.java:156)
	at org.eclipse.core.commands.Command.executeWithChecks(Command.java:488)
	at org.eclipse.core.commands.ParameterizedCommand.executeWithChecks(ParameterizedCommand.java:485)
	at org.eclipse.e4.core.commands.internal.HandlerServiceImpl.executeHandler(HandlerServiceImpl.java:213)
	at org.eclipse.ui.internal.handlers.LegacyHandlerService.executeCommand(LegacyHandlerService.java:389)
	at org.eclipse.ui.internal.actions.CommandAction.runWithEvent(CommandAction.java:142)
	at org.eclipse.jface.action.ActionContributionItem.handleWidgetSelection(ActionContributionItem.java:580)
	at org.eclipse.jface.action.ActionContributionItem.lambda$4(ActionContributionItem.java:414)
	at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:89)
	at org.eclipse.swt.widgets.Display.sendEvent(Display.java:5794)
	at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1529)
	at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:5025)
	at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:4477)
	at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$5.run(PartRenderingEngine.java:1155)
	at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
	at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:1046)
	at org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:155)
	at org.eclipse.ui.internal.Workbench.lambda$3(Workbench.java:644)
	at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
	at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:551)
	at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:156)
	at org.knime.product.rcp.KNIMEApplication.start(KNIMEApplication.java:189)
	at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:203)
	at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:136)
	at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:104)
	at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:402)
	at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:255)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:659)
	at org.eclipse.equinox.launcher.Main.basicRun(Main.java:596)
	at org.eclipse.equinox.launcher.Main.run(Main.java:1467)
	at org.eclipse.equinox.launcher.Main.main(Main.java:1440)

Environments: Ubuntu 22.04 LTS, Eclipse IDE for RCP and RAP Developers 2022-12, Knime Analytics 4.7
Chosen Target platform: KNIME-AP.target

Hi @nmorti,

the nightly (which you probably use, if you used the default configuration of the instruction, i.e. you used the master branch) can be partially unstable these days. Could you try according to GitHub - knime/knime-sdk-setup: KNIME Analytics Platform - SDK Setup and the section above it to change the branch to releases/2022-12?

Let me know whether that helped.

Best regards
Steffen

3 Likes

Hi @steffen_KNIME
It worked with branch releases/2022-12.
Thanks

1 Like
