copy paste chart in excel

[Banksy]

Hello everyone，

I want use KNIME copy paste chart in excel from pic1 to pic2，and have 5 sheets need it, but I don’t know do it.
Please help me ,thank you.

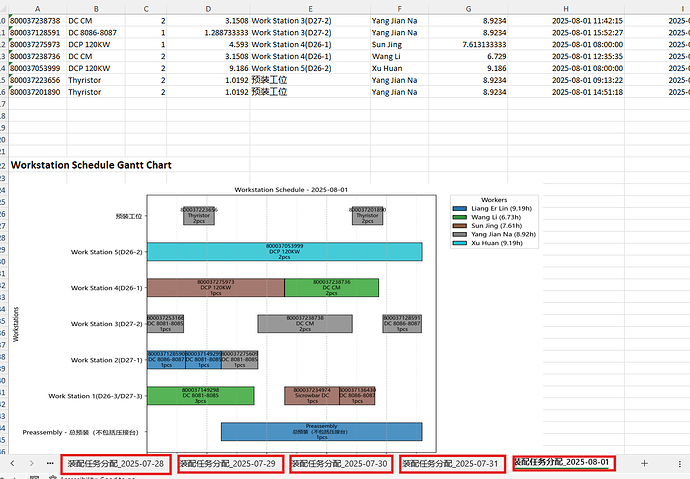

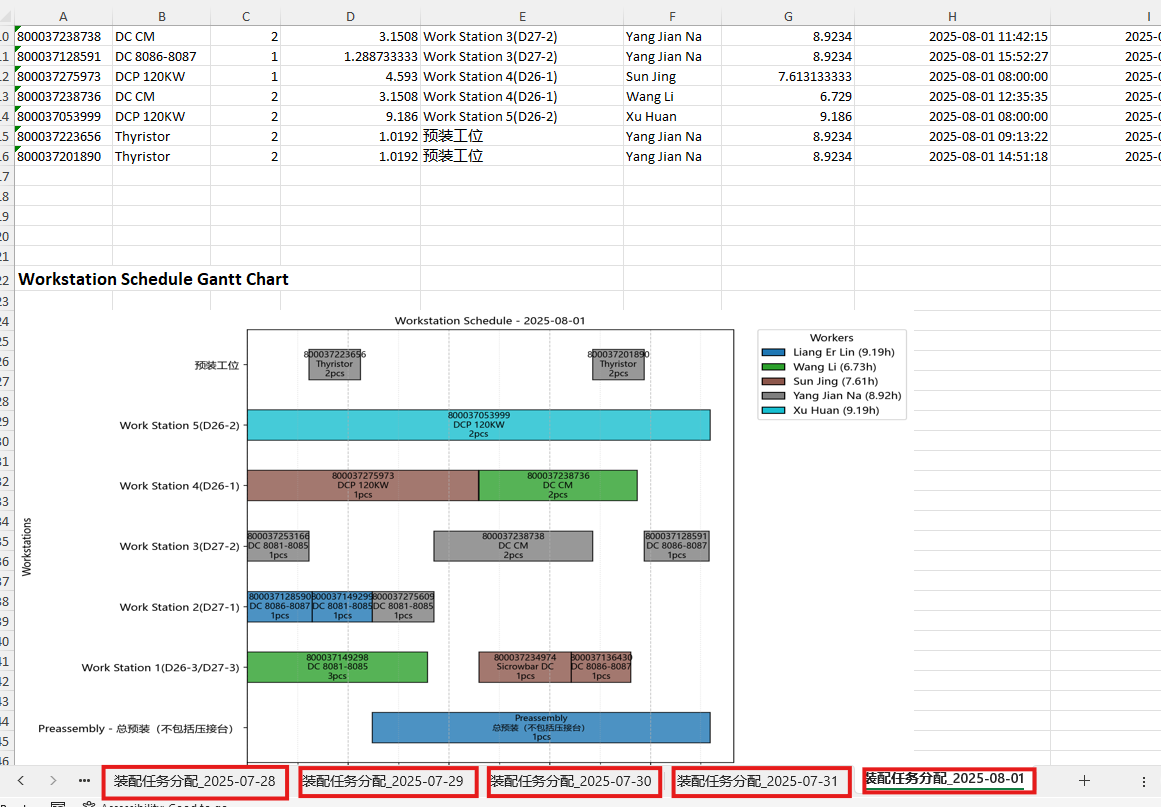

pic1

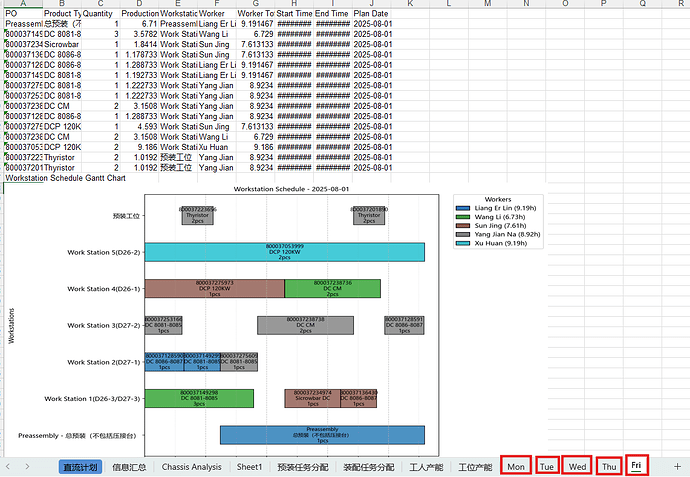

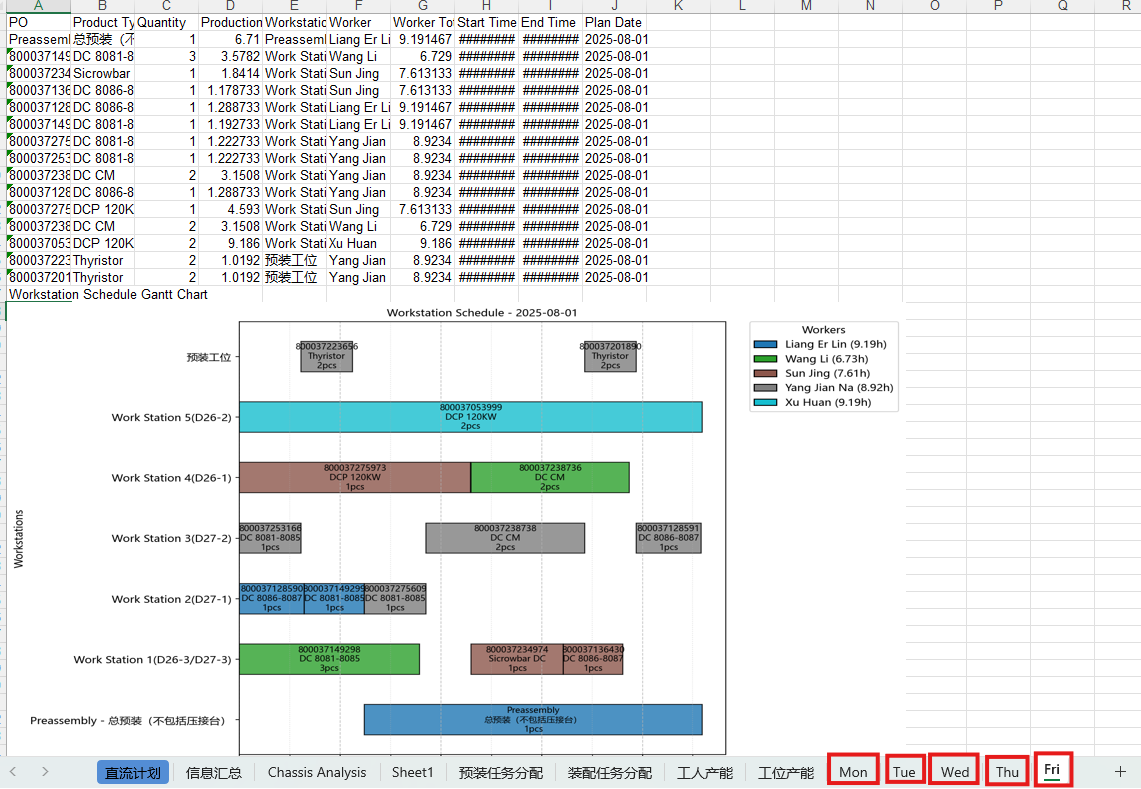

pic2

[Banksy]

Hello my master @takbb,
Could you help me for this post, no one has solved this problem yet.
Thank you in advance.

[mlauber71]

@Banksy maybe it would be best to explain what it is you want to do exactly and provide an example. What does it mean to ‘copy’ the chart. Do you want to refer to a different set of data and use the same chart? Do you want to do dynamic things?

What you can do is use OpenPyxl to place graphics on a sheet that you have created with Python.

combine image in different columns

@Aprins I have built a workflow to show how this could be done: save the image as PNG file export the data to an Excel sheet determine the number of Rows and add 2 (to give the image a little bit of space) use OpenPyxl to place the image under the table on the sheet starting in column A The image will be as large as the PNG file, starting in column A. [image] Maybe you can adapt this example: [image]

I think what is possible is to provide an Excel file with a data sheet and a chart. Then you copy this file with KNIME to a new location and then fill the data sheet with new data.

[Banksy]

Hi @mlauber71
I’m very sorry, maybe I didn’t express it clearly. I have two Excel files, and I need to copy the images from 5 sheets in one Excel file and paste them into the 5 sheets in another Excel file. None of the 5 images are dynamic data.

[mlauber71]

@Banksy it is possible to extract images from Excel files with the help of OpebPyxl which is already included in the KNIME python extension.

Excel file with image

@andrejz actually you can use Python and OpenPyxl and KNIME to extract the images and save them in a subfolder as PNG files: [image] You will have to see if it does work with all images. [image] To have the results in an organised way they are in a sub-folder and carry the file name, the sheet and their cell the name. A list is also being provided. [image] In the subfolder there is a Jupyter notebook (kn_example_python_excel_image_extract.ipynb) to play around with the code and settin…

You can then use the other example to place the images in the other Excel file.

I assume you have several of these otherwise you would not need KNIME to do this. Could be a job for loops.

KNIME, Paths and Loops — Automate Everything

Maybe you can provide an example that would represent your task.

[Banksy]

Hi @mlauber71
I don’t know how to use python, could you help me？

[mlauber71]

@Banksy

I don’t know how to use python, could you help me？

Sure, I can. Maybe you start with this article about the basics of KNIME and Python:

KNIME Snippets (5) — Python Overview

After you feel comfortable with that you can move on to using conda environments if you need special packages. But in KNIME often you will just have to have conda installed and then an Environment Propagation node will take care of the rest.

KNIME and Python — Setting up and managing Conda environments

About the code. Modern LLMs or also the KNIME AI (K-AI) can help with that. Also, you can always ask in the forum. For example, if you provide a sample file people can try to help you.

[Banksy]

@mlauber71
Thank you so much! I know how to use python nodes and install python packages, but I don’t write python code for this imported image.

[mlauber71]

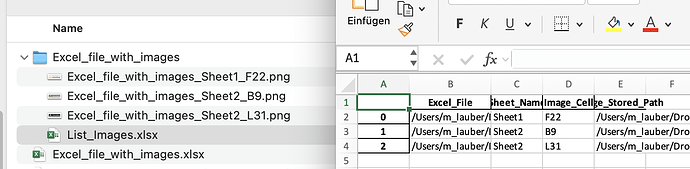

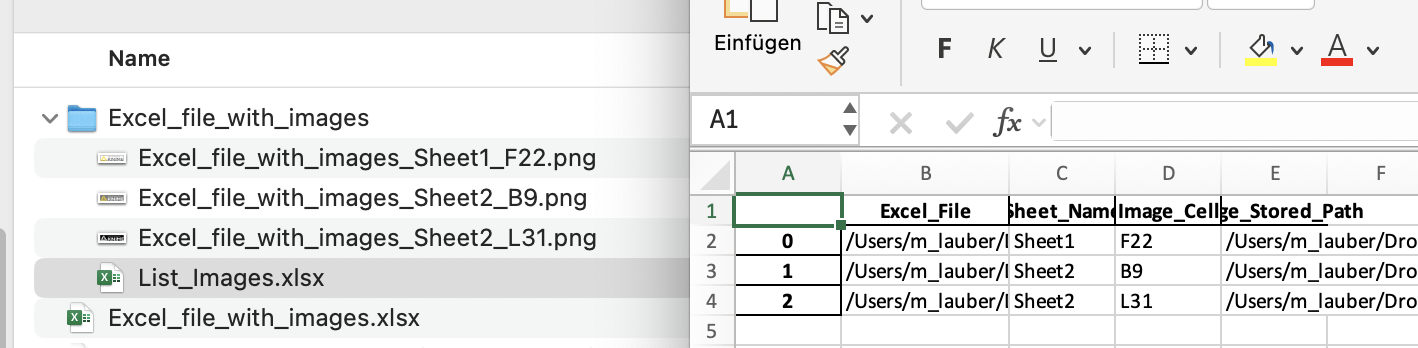

@Banksy well the code is already there in the example. It will also create a list in Excel in the sub-folder storing the images from which excel file the image came and in which Excel sheet and address it was sitting and where the image is stored now.

KNIME Community Hub

[denisfi]

Hi guys,

Maybe a suggestion. You can change information between 2 or more excel files if you maintain the same folders and name files, shareing chats. Just create at the original file the chart, copy and past to another excel file. It’ll create a data link from this chart and if you made some changes at the original file and update it, the second excel will be updated too when you click to refresh your data. Thats one of the powerfull processos between MS softwares, excel / powerpoint / word…

I know that it’s not a knime process, but if you are leading with MS products, it can help you.

Thanks, Denis

[Banksy]

Hi @denisfi ，
Thank you very much for your reply, my request is to copy and paste images from multiple sheets in one Excel file to another Excel file, since it is multiple sheets, I would like to use KNIME to simplify this process.

[Banksy]

Hi，@mlauber71
Due to the reasons related to my country, I am unable to download workflows from KNIME HUB. Could you please attach it to this post? I will try to see if I can download it. Thank you.

[mlauber71]

@Banksy Here is the workflow to extract images from Excel:

kn_example_python_excel_image_extract.knwf (714.7 KB)

Here is the workflow to place images inside Excel:

Excel - place PNG image on Sheet with OpenPyxl.knwf (346.8 KB)
