KNIME Fabric nodes issues - what was learned trying to set this up

[tescnovonesis]

Hi,

We have explored how-to use KNIME for Microsoft Fabric ETL Workflows.

It was not straightforward to get to work, and I hope with this post to share some of the learnings, so it will be easier for you, if you bump into the same problems.

These learnings is based on KNIME AP 5.8.2 LTS, KNIME Business Hub 1.17.4 and extension KNIME Azure Cloud Connectors 5.7.0.

Most important finding: KNIME Hub secret manager don’t support creating the Microsoft Oauth secrets to work with the KNIME Microsoft Fabric nodes.
The consequence is that it is not possible to schedule workflows on the Hub towards Microsoft Fabric Warehouse or Onelake. KNIME Service reported that internal ticket HUB-11640 target to allow for multi-resource OAuth in KNIME Hub secret manager.

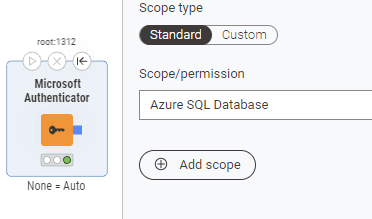

This functionality works locally in AP, when NO SCOPES are defined in Microsoft Authenticator. Then Microsoft Authenticator will pull the scopes one by one.

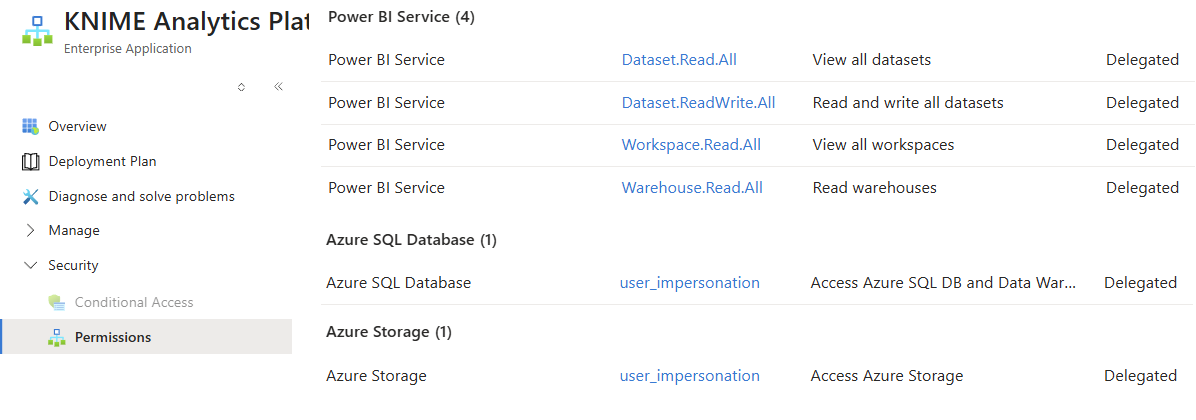

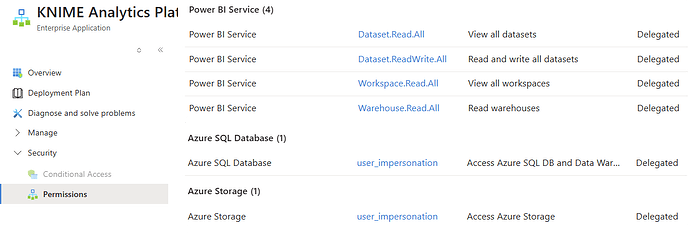

The scopes found needed to get this to work is:

• Power BI Service: Dataset.Read.All : For Workspace
• Power BI Service: Dataset.ReadWrite.All : For Workspace
• Power BI Service: Workspace.Read.All : For Workspace
• Power BI Service: Warehouse.Read.All : For Warehouse
• Azure SQL Database: user_impersonation : For Warehouse
• Azure Storage: user_impersonation : For OneLake

We though had to get help from KNIME Service, to figure out we were missing Power BI Service: Warehouse.Read.All

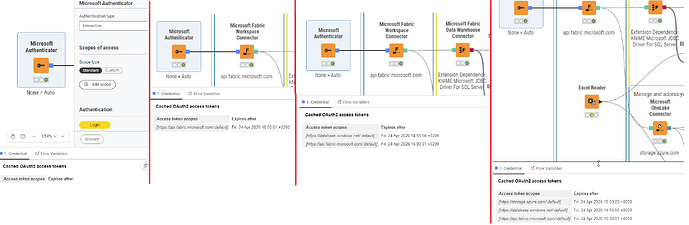

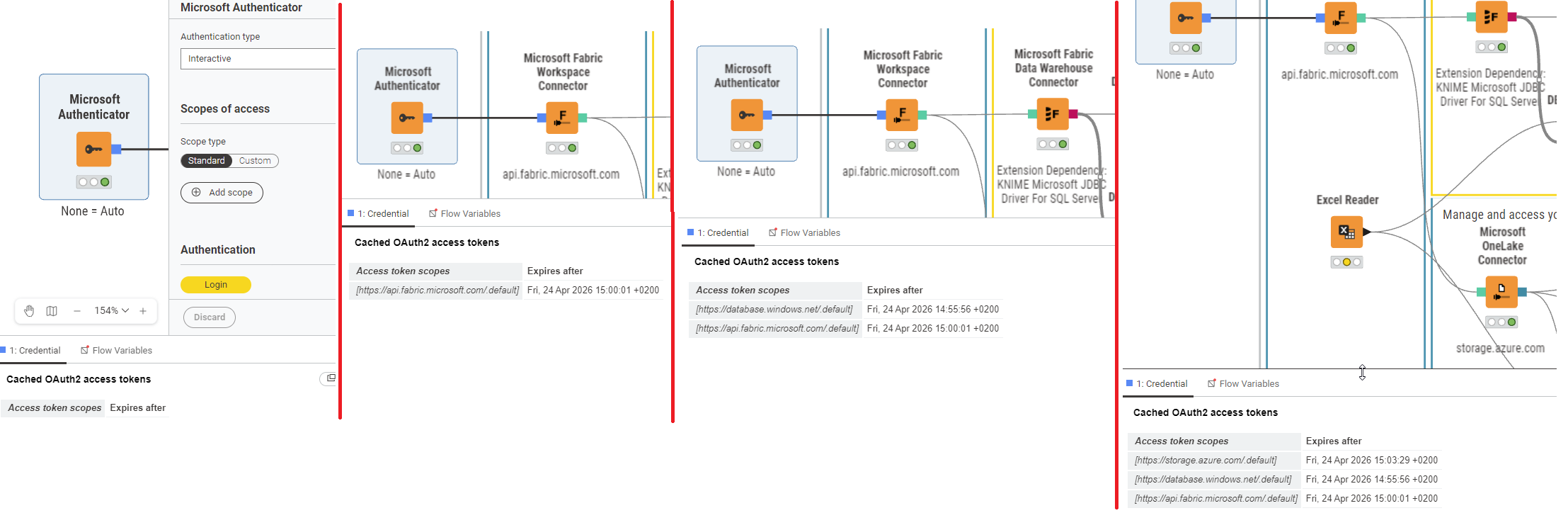

By observing the output of “Cached OAuth2 access tokens” in “Microsoft Authenticator”, we could see:

Access token scopes

• [https://api.fabric.microsoft.com/.default\]
• [https://database.windows.net/.default\]
• [https://storage.azure.com/.default\]

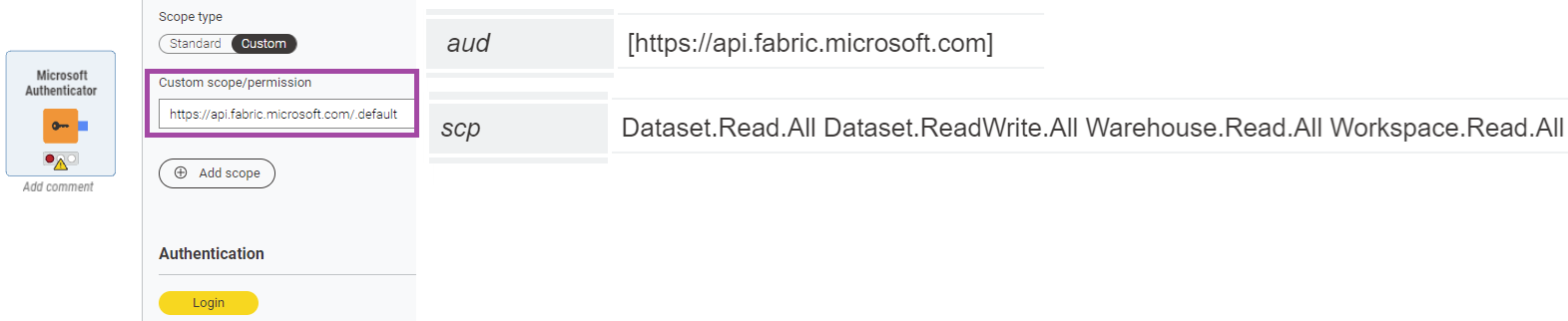

If we try, one-by-one, to get at tokens for these scopes, we can see in output of “Microsoft Authenticator”

• aud: https://api.fabric.microsoft.com
  • scp: Dataset.Read.All Dataset.ReadWrite.All Warehouse.Read.All Workspace.Read.All
• aud: https://database.windows.net
  • scp: user_impersonation
• aud: https://storage.azure.com
  • scp: user_impersonation

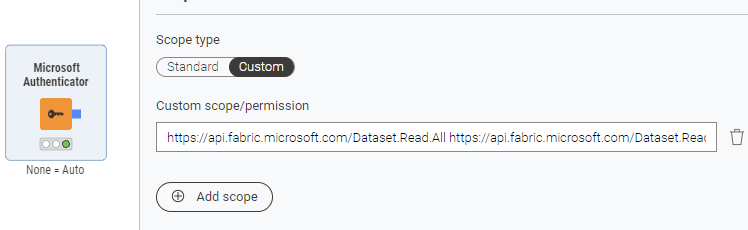

To make sure you have all the needed scopes, you can again use the Microsoft Authenticator node, to specify the scopes, but only 1 resource at the time.

https://api.fabric.microsoft.com/Dataset.Read.All https://api.fabric.microsoft.com/Dataset.ReadWrite.All https://api.fabric.microsoft.com/Warehouse.Read.All https://api.fabric.microsoft.com/Workspace.Read.All

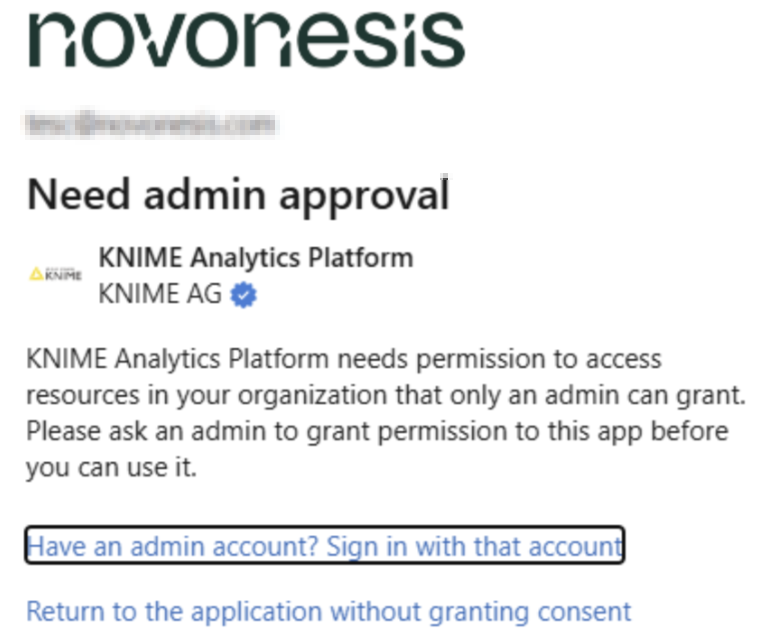

That might help you getting this pop-up, to get the missing scope authenticated

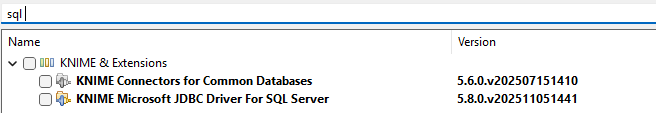

We also found, that to get the Fabric Warehouse node to work, the KNIME Azure Cloud Connectors have a missing dependency for: “KNIME Microsoft JDBC Driver For SQL Server”

So, install that Extension.

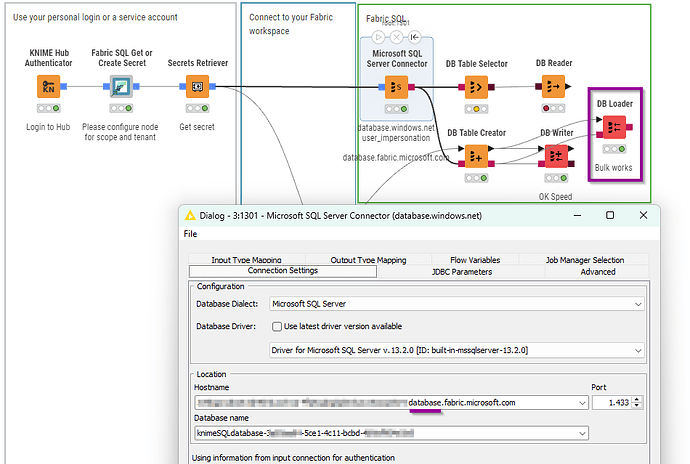

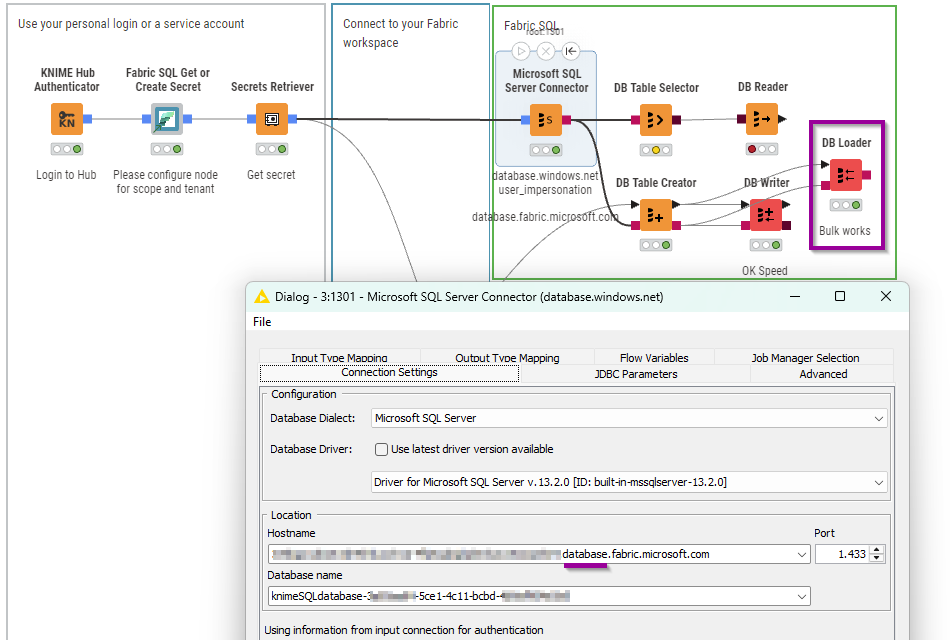

After all of this confusion, we then found out, that Fabric has been offering SQL since November 2025.
What’s new and improved for SQL database in Fabric (Generally Available) | Microsoft Fabric Blog | Microsoft Fabric

Most importantly, the DB Loader works here. 10m rows in ~1 min.

And that just works with the Azure SQL Database scope. And works with Hub secret manager.

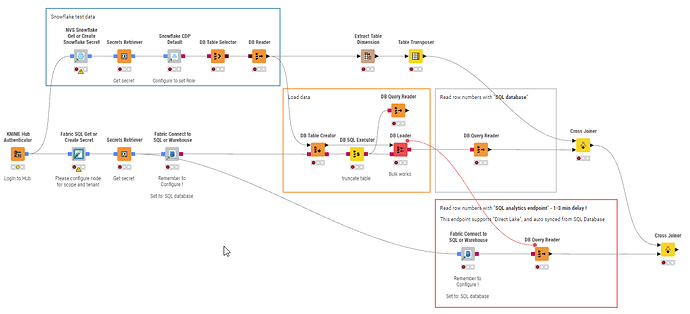

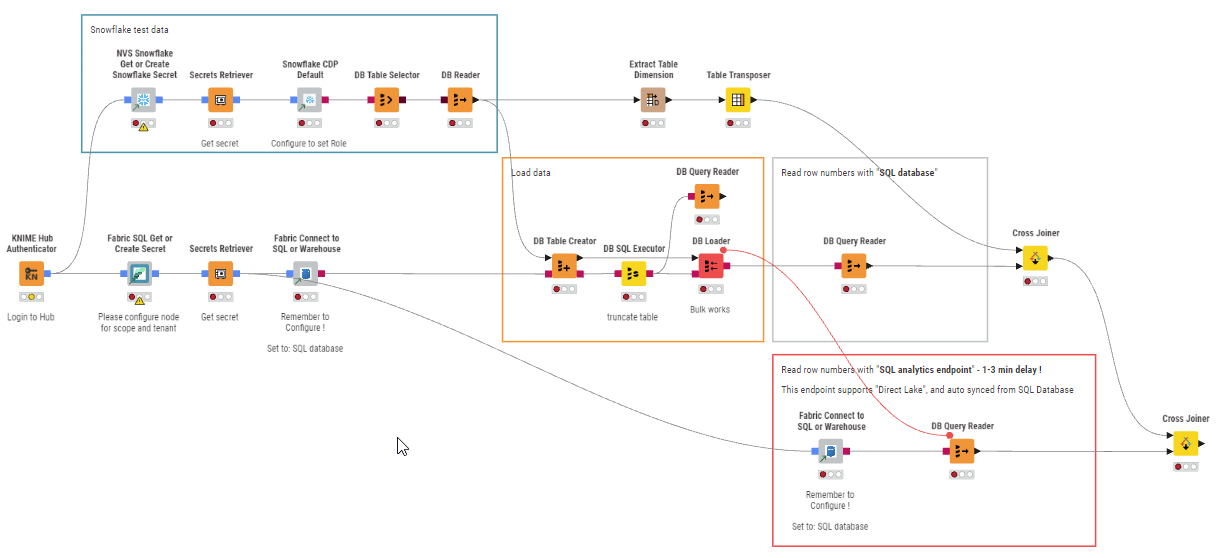

And you can start making some nice simple templates

[MartinDDDD]

Wow thanks a lot for sharing and putting together these lessons learned in such a comprehensive manner!

Really hope the Knime team picks this to make sure it just not just vanish in the forum history!

[tescnovonesis]

Almost forgot

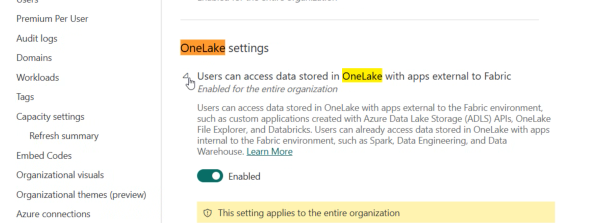

The Fabric admin needs to tick the OneLake setting:

”Users can access data stored in OneLake with apps external to Fabric”

[Alice_Krebs]

Hi @tescnovonesis
Thanks for all your efforts and sorry for the inconvenience!!
Indeed, the fact that one HAS to set a scope when creating a secret prevents that a secret can be used for MS Fabric right now. This should be solved with the next release.
Setting the scope to Standard > PowerBI in secret creation should allow working at least with Warehouses, although not with OneLake.

[tescnovonesis]

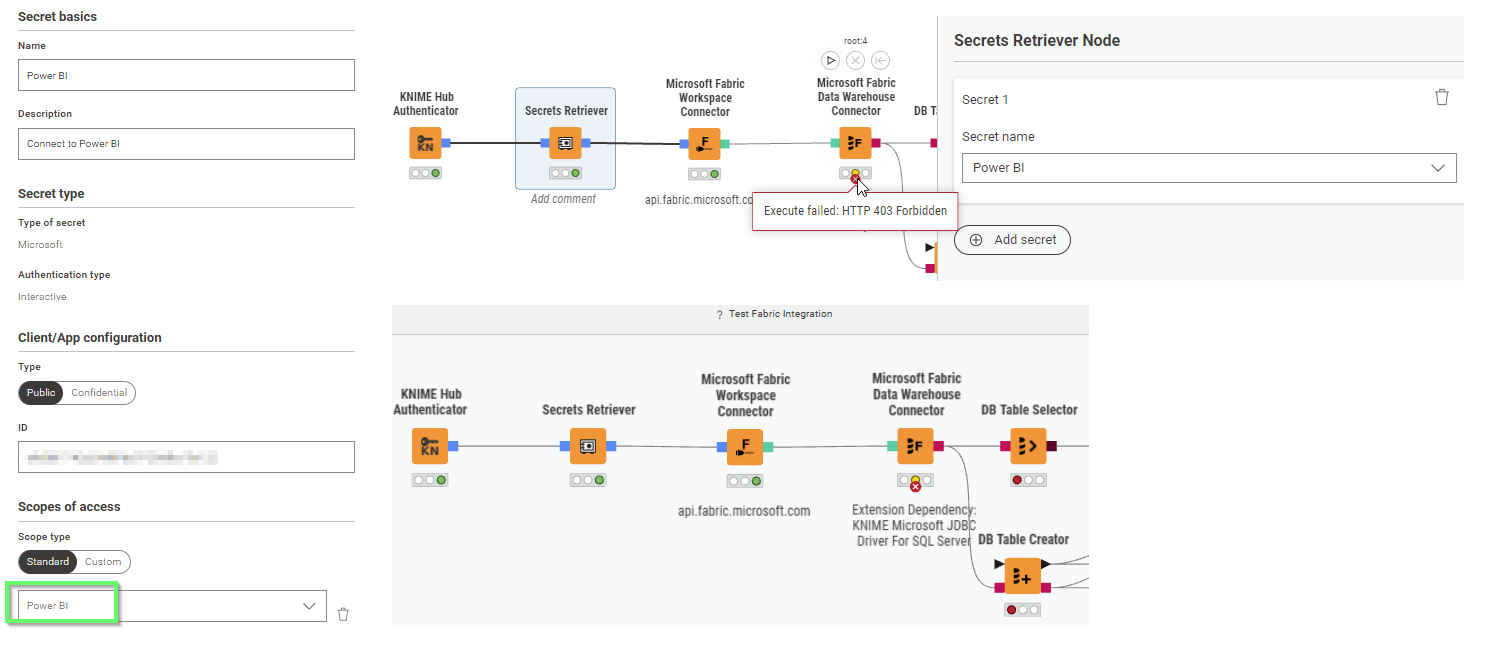

Hi @Alice_Krebs

Can you share your setup?
Since this does not work for me

[tescnovonesis]

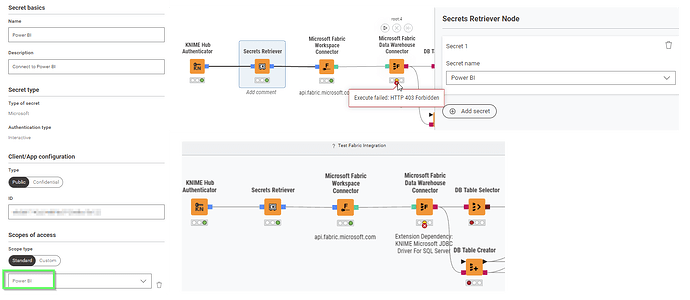

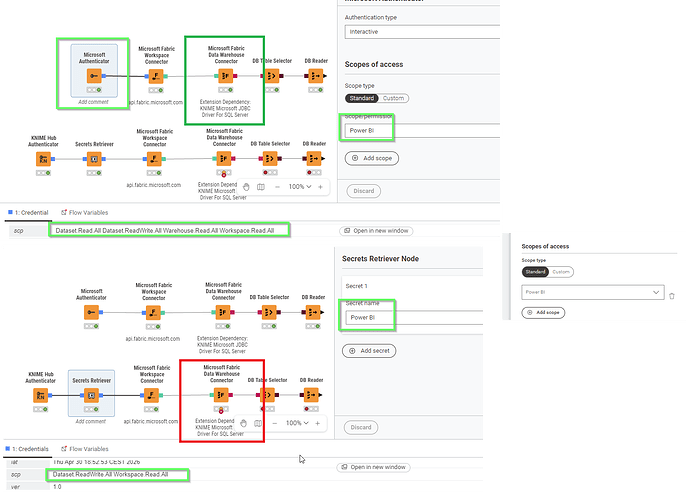

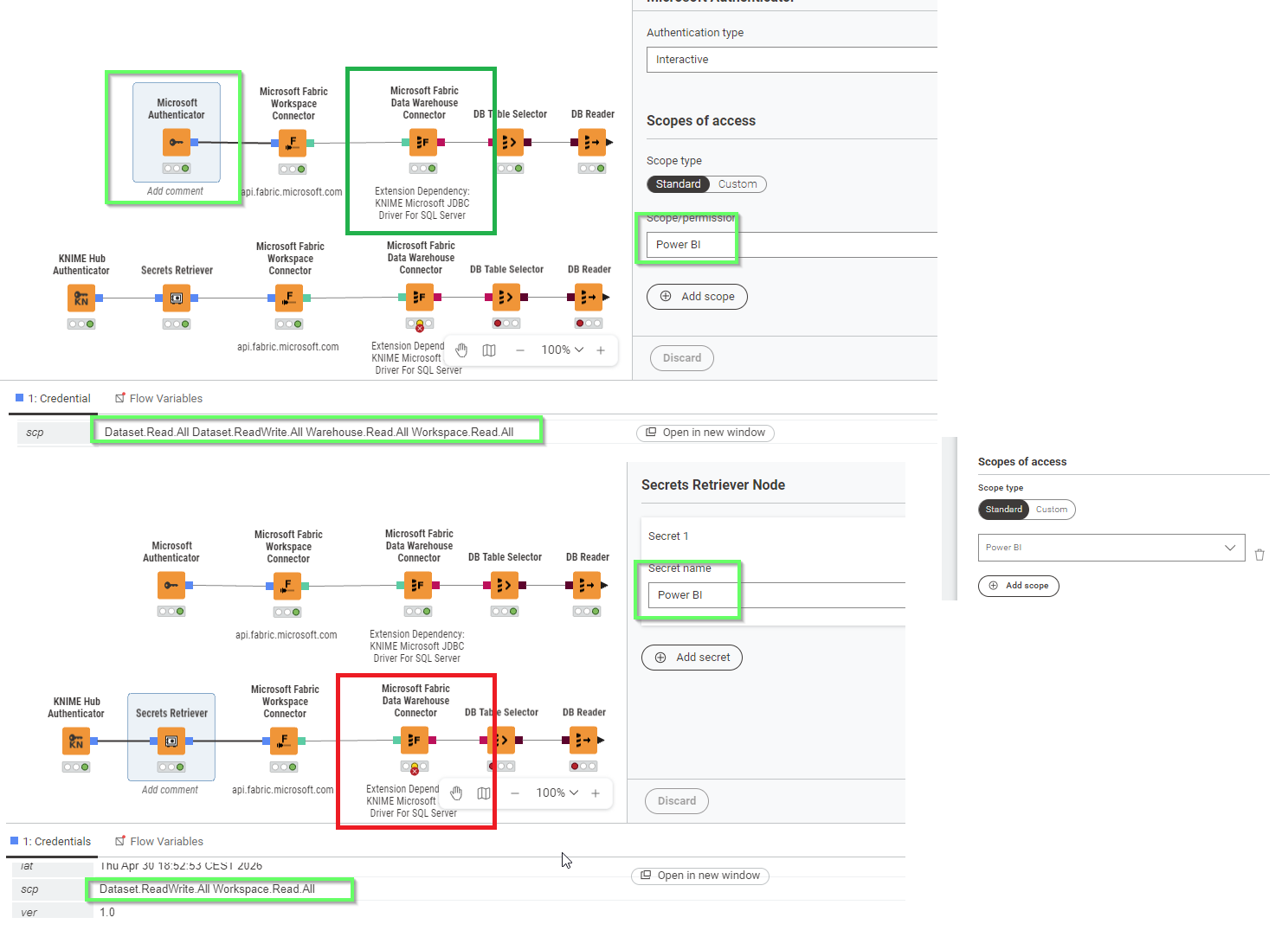

This perhaps shows the scopes extracted via Microsoft Authenticator and KNIME Hub Secret manager is not equal?

[tescnovonesis]

But maybe it’s me.

When I pin the scopes to
https://analysis.windows.net/powerbi/api/Dataset.Read.All https://analysis.windows.net/powerbi/api/Dataset.ReadWrite.All https://analysis.windows.net/powerbi/api/Warehouse.Read.All https://analysis.windows.net/powerbi/api/Workspace.Read.All

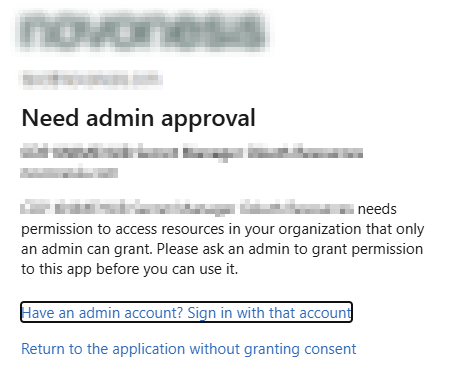

Shows, that I am missing to get some scopes approved for the EA App

[Alice_Krebs]

Hi @tescnovonesis
So this worked for me to work with (or at least access) data in Fabric Warehouses:

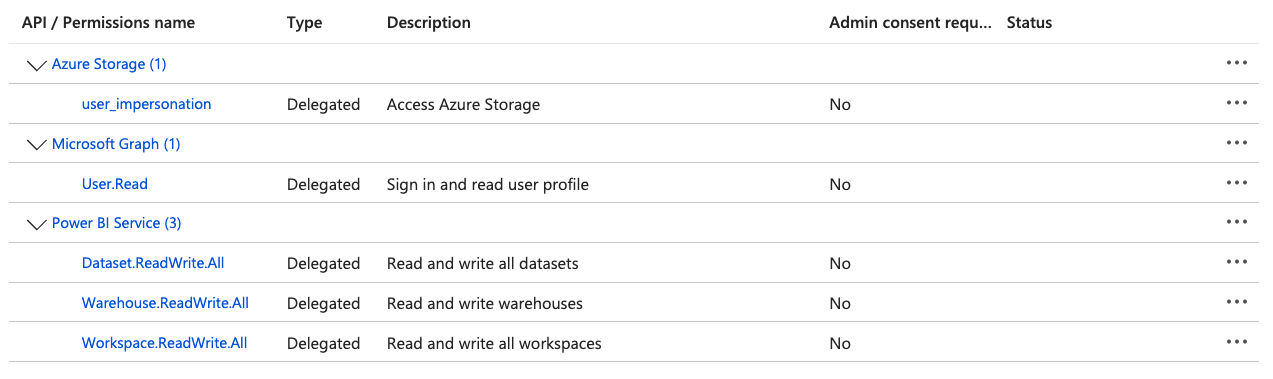

1. App registration:

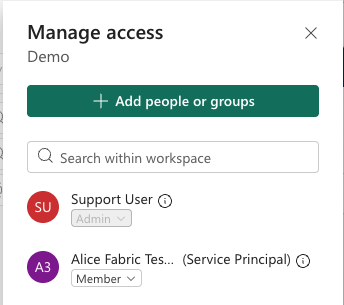

2. I granted the Azure service principal "Member " access to the Fabric workspace:

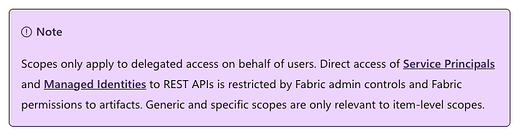

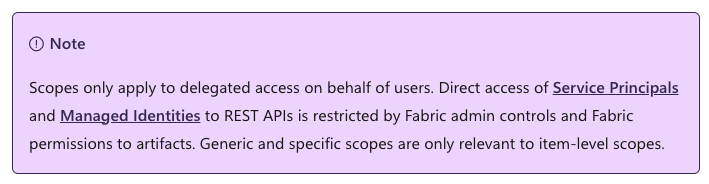

   I assumed that was necessary after reading this:



   here Microsoft Fabric REST APIs scopes - Microsoft Fabric REST APIs | Microsoft Learn
   Maybe “Contributor” is enough though.

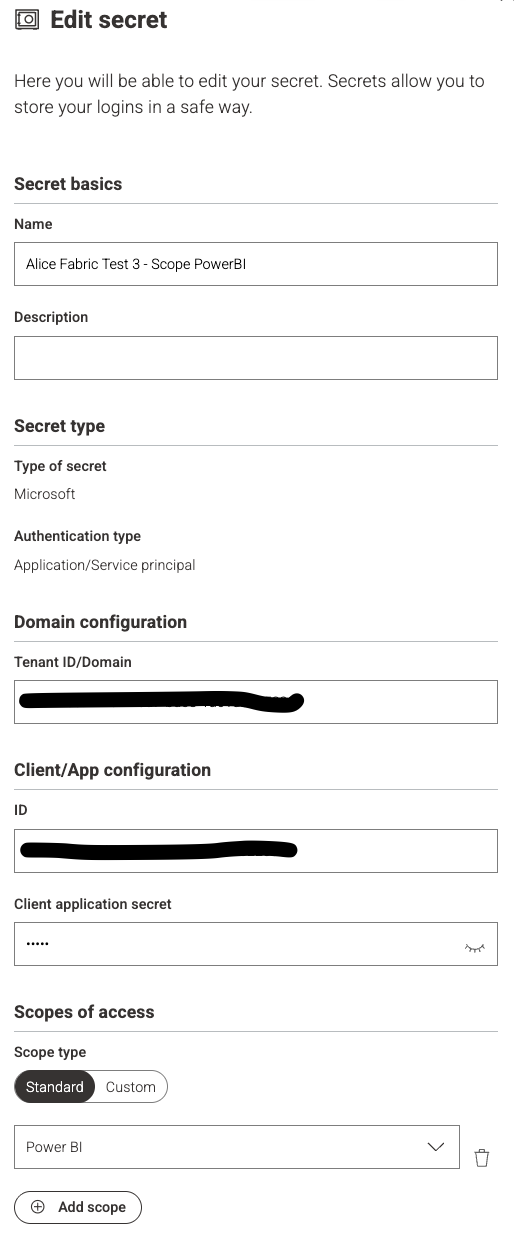

3. KNIME Hub Secret setting:

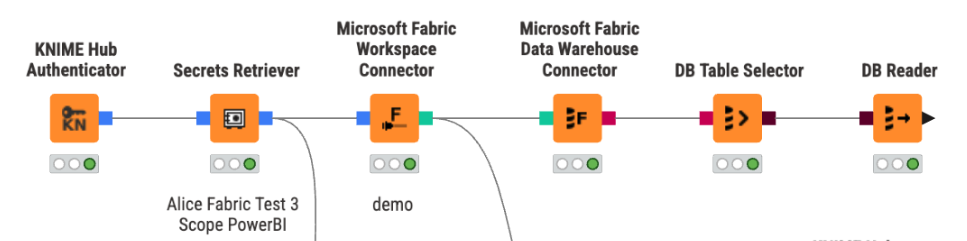

4. Accessing data in a workflow works:

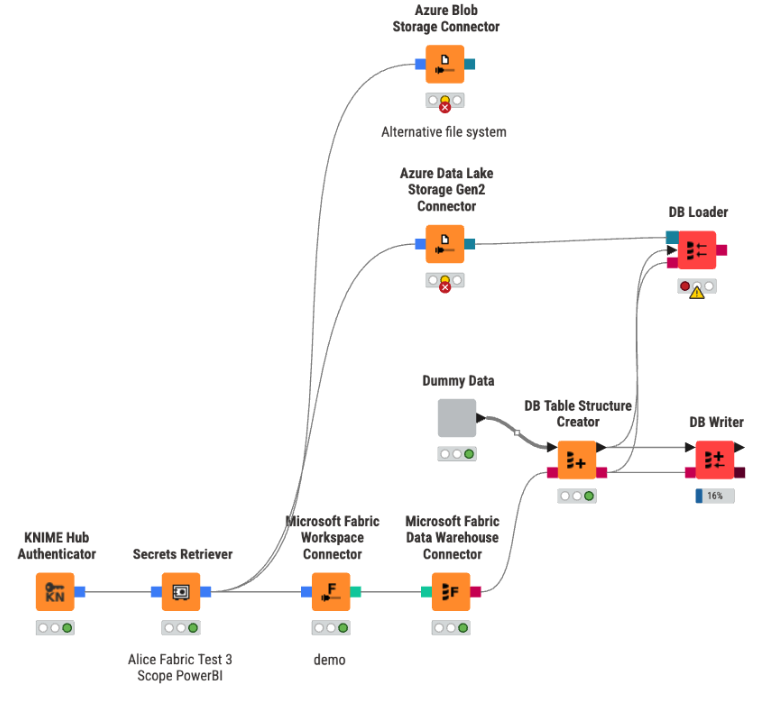

5. I didn’t get bulk loading of data into the Warehouse running with these scopes, but creating and inserting data seems to work (though slow)




[tescnovonesis]

Hi Alice,

Thank you so much for sharing.

What I think confused me, was the knowledge about missing Scopes.
I think that the KNIME Secrets managers, when choosing Power BI as scope, are requesting the scope .default. As far as I have understood from Microsoft Documentation (I could be wrong), the .default scope will request all pinned scopes within a resource groups.

For a user that is missing the “Warehouse.ReadWrite.All”, it will be hard to figure out how to get that. Perhaps a better option will be to make a new Dropdown in the Secret Manager, and call it Fabric SQL?, and then make that pin the needed scopes, instead of using .default
I do recognize, that will soon lead to an potential “large list” of combinatorial scope options.

The next best options is to make it crystal clear to end-users, which scopes they need and how to get them assigned. So, perhaps annotating the Templates by KNIME or add something to the documentation.
