Need help creating loop

[Rugg90]

Hi there,

I need help creating a workflow, Grouping by Chain ID I would like to create a sub chain based on what the flag is in that row.

The first row of the chain should become sub-chain “Chain ID-1”. Then stating in the second row if the flag is N and the prior flag is Y the sub-chain ID would be “Chain ID-1” but if the prior flag is N then the sub-chain ID would become “Chain ID-2”. Blank flags are the last row of the chain_ID

We have a similar scenario in VBA but would like it in KNIME.

[HansS]

Hi @Rugg90 Welcome to KNIME Forum

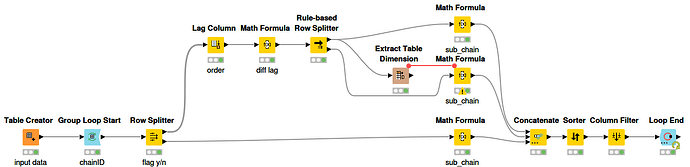

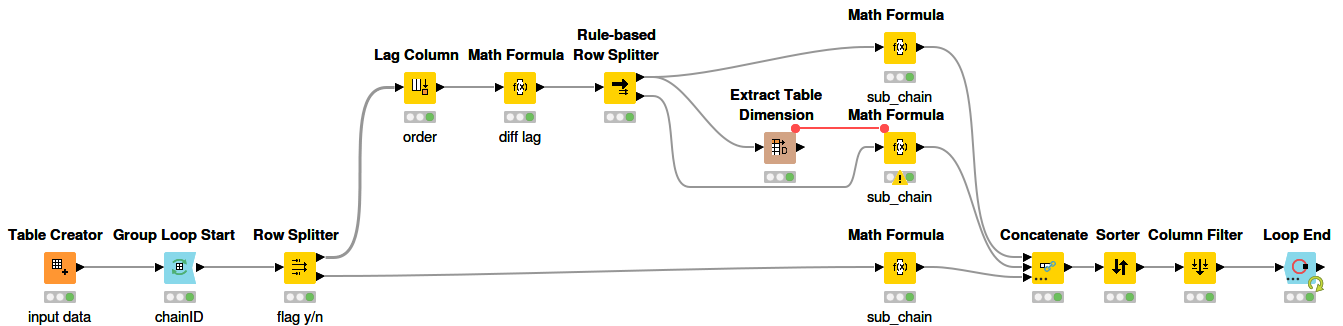

Take a look at this wf need_help_creating_loop.knwf (32.9 KB)
Does it give you the result you are expecting?

gr. Hans

[Rugg90]

Hi there,

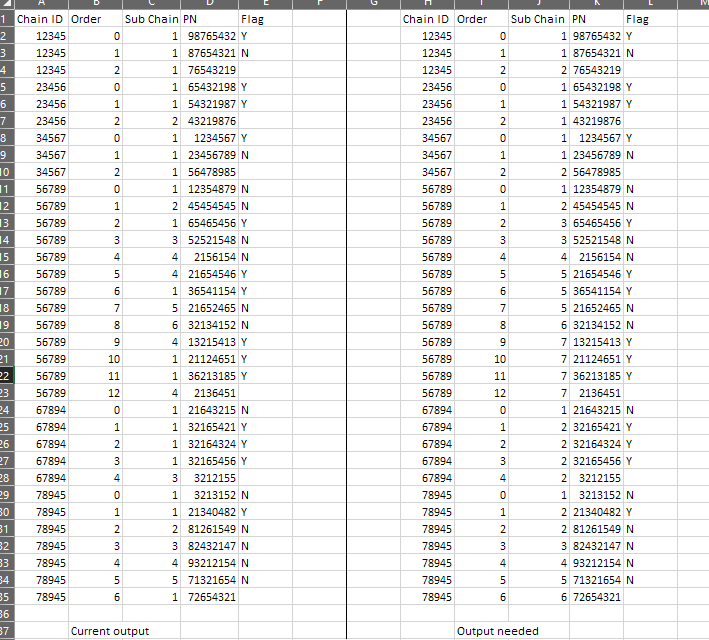

It seems really close to what we need. Below the left is what your output produced and the right is what we need produced. I think the blanks may be throwing it off?

Any ideas on how to correct this?

[HansS]

Hi @Rugg90

Can you upload this sample data set with the input columns and the output needed/expected?
It makes if much more easier to create / adjust a worklfow.
gr. Hans

[Rugg90]

So sorry for the delay, here is the input and output wanted.

KNIME_project2.knwf (9.3 KB)

[HansS]

Hi @Rugg90

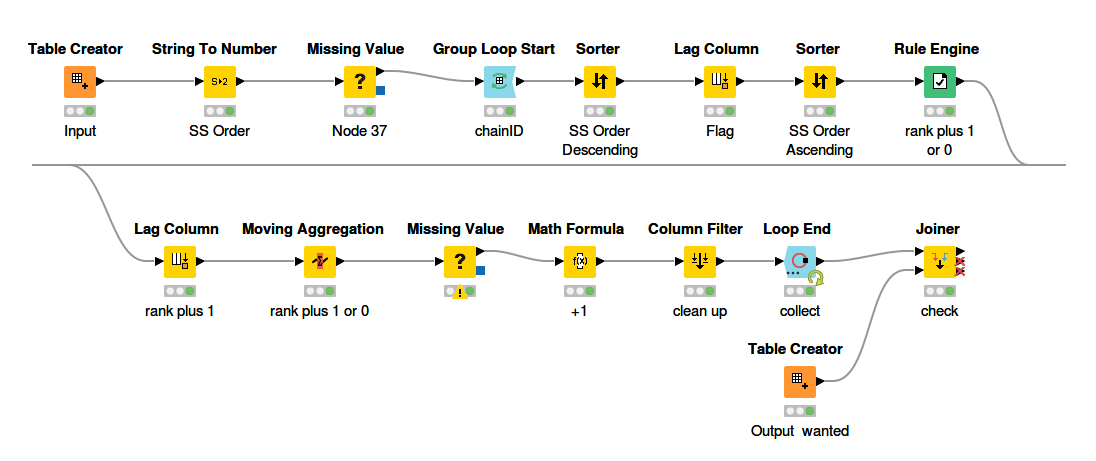

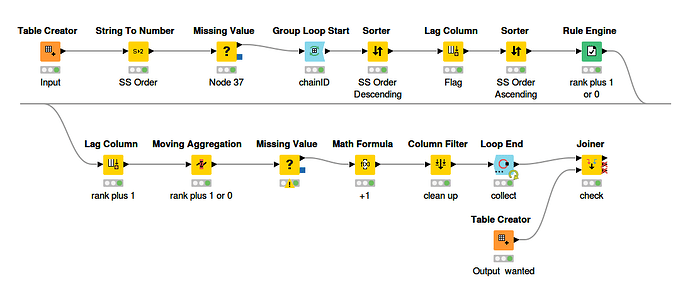

No problem with the delay (after all, it is your issue ). But I’m very happy with some sample data. this makes it much easier to compare my solution with your desired output. I’ve now come up with a different approach, and I think it works. Maybe the wf is not 100% effective. But check it out. Curious if this is indeed a solution that you can continue with.
KNIME_project_33.knwf (95.4 KB)

gr. Hans
