separate a column values basis | delimiter

KNIME Analytics Platform
1

I have multiple columns where each column have multiple values separated by | delimiter operator. like this
Column1 Column2 Column3
value1 value2 x1|x2|x3
value3 value4 x4
value5 value6 x5|x6

I have to separate column3 values like this:
Column1 Column2 Column3
value1 value2 x1
x2
x3
value3 value4 x4
value5 value6 x5
x6

I hope my question is clear. I can do this in excel using a simple macro. Can anybody please tell me how to do it in Knime. Thanks in advance!

When I posted this the format is different than the one I saw while writing. So the x2 will be in the cell below x1, similarly x3 below x2 and so on. This is my first question here. Sorry for the inconvenience.

2

Should be a job for the Cell Splitter

image1334×764 68.8 KB

kn_example_separate_fields.knwf (11.6 KB)

3

Hi!

In addition to @mlauber71 solution if you want x2,x3… values all in one column some unpivoting needs to be done together with couple of more nodes.

Here is a workflow:

Split&Unpivot.knwf (11.7 KB)

Br,
Ivan

1 Like
4

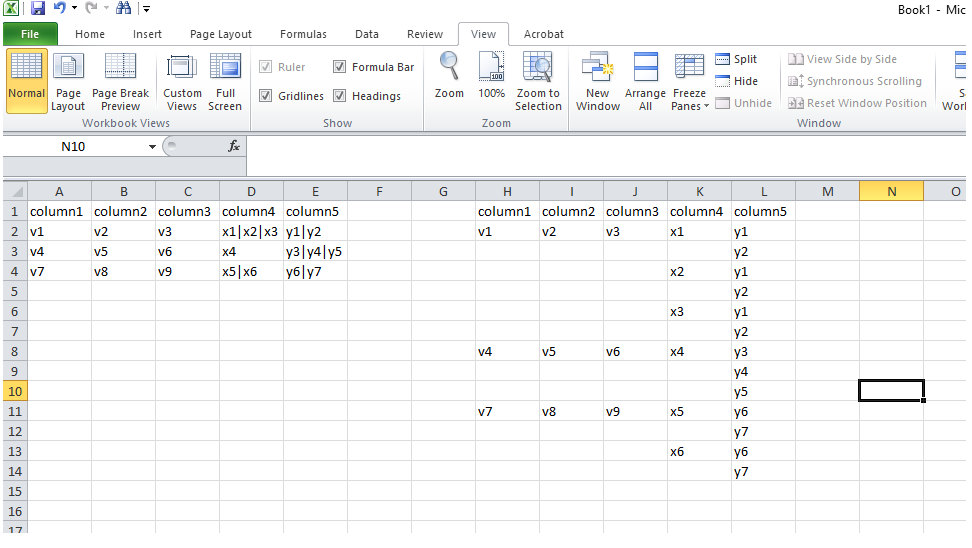

Thanks a lot @ipazin for your answer. Is there any way in which I can slpit two columns on a single node? Or do I have to spilt into two branches from file reader and use one node to split each column. I would like to split both columns on a single node. Is that possible? for more clarity I am attaching the image, the left side is input and right side of it output. I used excel macros to perform this task.

1
1972×548 41.8 KB

5

Hi!

If I understood you well I would say you need two Cell Splitter nodes but actually you just need to repeat one more time same/similar process :wink:

Br,
Ivan

6

Thanks a lot Ivan. I really appreciate your help :slight_smile:

1 Like
