space issue on a workflow

[chaithuj]

Urgent help required

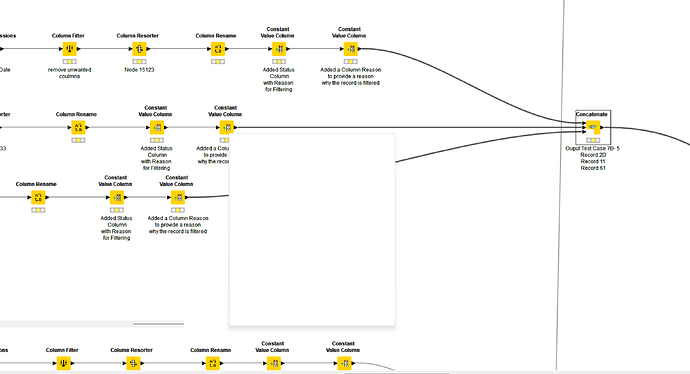

Working on a critical project which is so huge and ran into a scenario where it not letting me add any nodes, can anyone please help here
I am at 80% closure to completion and have no time.
Options of components and all will take very longer and don’t have that much time.

log:
!ENTRY org.eclipse.ui 4 0 2024-07-04 20:23:09.477
!MESSAGE Unhandled event loop exception
!STACK 0
org.eclipse.swt.SWTError: No more handles
at org.eclipse.swt.SWT.error(SWT.java:4944)
at org.eclipse.swt.SWT.error(SWT.java:4833)
at org.eclipse.swt.SWT.error(SWT.java:4804)
at org.eclipse.swt.widgets.Widget.error(Widget.java:450)
at org.eclipse.swt.widgets.Control.internal_new_GC(Control.java:1776)
at org.eclipse.swt.graphics.GC.win32_new(GC.java:5059)
at org.eclipse.swt.widgets.Composite.WM_PAINT(Composite.java:1548)
at org.eclipse.swt.widgets.Control.windowProc(Control.java:4803)
at org.eclipse.swt.widgets.Canvas.windowProc(Canvas.java:340)
at org.eclipse.swt.widgets.Display.windowProc(Display.java:5034)
at org.eclipse.swt.internal.win32.OS.DispatchMessage(Native Method)
at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3643)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$5.run(PartRenderingEngine.java:1155)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:1046)
at org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:155)
at org.eclipse.ui.internal.Workbench.lambda$3(Workbench.java:644)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:551)
at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:156)
at org.knime.product.rcp.KNIMEApplication.start(KNIMEApplication.java:191)
at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:203)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:136)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:104)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:402)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:255)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.base/java.lang.reflect.Method.invoke(Unknown Source)
at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:659)
at org.eclipse.equinox.launcher.Main.basicRun(Main.java:596)
at org.eclipse.equinox.launcher.Main.run(Main.java:1467)

!ENTRY org.eclipse.ui 4 0 2024-07-04 20:23:09.479

[sanket_2012]

Hi @chaithuj ,
Which version of the KNIME Analytics platform are you using?

where it is not letting me add any nodes—does this mean it is not letting you add a node inside the canvas where we edit the workflows?

Thanks,
Sanket

[chaithuj]

yes it is happening multiple times
i have to restart knime when ever it happens, loose changes and re do my work.
It is also hanging a lot and hangs.

Knime version being used : 4.7.4
Yes in the workspace where we add nodes, it doesn’t let me add any nodes. How ever this got fixed after a restart of knime.
But it is very slow, see taking longer time to execute and hangs and shuts down multiple times

Regards
Chaitanya

[chaithuj]

Unresponsive workflow happening multiple times in a day and very frustrating

[mlauber71]

@chaithuj first: make sure to always have a backup of your work on another machine especially if it is unstable.

Then you want to check the resources of your system. Larger workflows will need more (especially) RAM. How many GB do you have assigned to knime? What is your operating system and processor? Make sure knime has enough and no other program is running at the same time.

You could try and activate columnar storage in a copy of your WF and test that (you remember to backup?).

Then: you might have to think about restructuring your WF and maybe call several parts from one central one.

Call workflow table based not accepting variable with path

@lelloba you could try the new: It seems it would accept String variables (as realtive paths): [image]

Call sub workflow from a main KNIME workflow – mlauber71

Mastering KNIME: Unlocking Peak Performance with Expert Tips and Smart Settings

[chaithuj]

@mlauber71

Make sure knime has enough and no other program is running at the same tim

Thak you will try to back it up on cloud and GIT
what is columnar storage or point me to where i can find details about it

[mlauber71]

@chaithuj with cloud please read the passage in the linked article and also the one about backup

About columnar storage this blog. Please note newer versions of knime (5.3) might have different settings. The storage might not improve speed but maybe save on volume on disk. You might have to try a few things - after you have secured a backup.

KNIME Columnar Table Backend Boosts Performance | KNIME

[chaithuj]

Thank you will check these articles

[chaithuj]

This issue is repeatedly happening and not letting me progress.
I was checking my machine specs

[chaithuj]

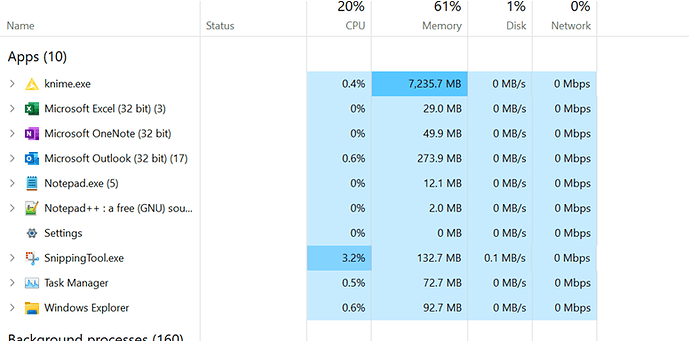

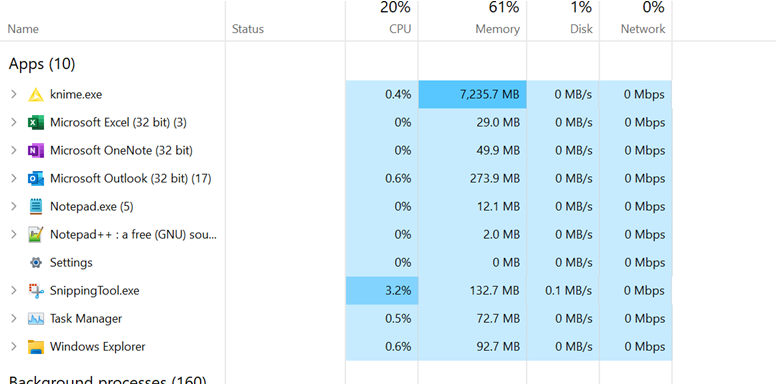

when system hangs, the utilization

[mlauber71]

@chaithuj how much memory is allocated for knime and how large is there data you want to process?

https://www.knime.com/faq#q4_2

How large is the KNIME workflow when you export it into a file?

[chaithuj]

The max memory allocated was 16GB, and i updated it to 24GB but it didnt help

now i see an issue that tool is not even coming up inspite of multiple restarts

[mlauber71]

@chaithuj restart knime with the -clean option once. If this does not help re-install the software

Knime Update Next button is not moving ?

Can you add “-clean” as first line in your knime.ini, then restart KNIME and try again? Afterwards, please remove -clean again, as it will slow down the startup otherwise. Cheers, Roland

Also if this does not work could you provide a fresh log file in debug mode.

[chaithuj]

Knime started up and when i execute the workflow, thsi is what i see in the log and it got stuck

org.eclipse.swt.SWTError: No more handles
at org.eclipse.swt.SWT.error(SWT.java:4944)
at org.eclipse.swt.SWT.error(SWT.java:4833)
at org.eclipse.swt.SWT.error(SWT.java:4804)
at org.eclipse.swt.widgets.Display.error(Display.java:1254)
at org.eclipse.swt.widgets.Display.internal_new_GC(Display.java:2708)
at org.eclipse.swt.graphics.Device.getDepth(Device.java:485)
at org.eclipse.swt.custom.CTabFolder.setBackground(CTabFolder.java:2431)
at org.eclipse.e4.ui.css.swt.properties.custom.CSSPropertyUnselectedTabsSWTHandler.applyCSSProperty(CSSPropertyUnselectedTabsSWTHandler.java:69)
at org.eclipse.e4.ui.css.swt.properties.AbstractCSSPropertySWTHandler.applyCSSProperty(AbstractCSSPropertySWTHandler.java:35)
at org.eclipse.e4.ui.css.core.impl.engine.AbstractCSSEngine.applyCSSProperty(AbstractCSSEngine.java:746)
at org.eclipse.e4.ui.css.core.impl.engine.AbstractCSSEngine.applyStyleDeclaration(AbstractCSSEngine.java:552)
at org.eclipse.e4.ui.css.core.impl.engine.AbstractCSSEngine.applyStyles(AbstractCSSEngine.java:419)
at org.eclipse.e4.ui.css.core.impl.engine.AbstractCSSEngine.applyStyles(AbstractCSSEngine.java:374)
at org.eclipse.e4.ui.css.swt.internal.theme.ThemeEngine.applyStyles(ThemeEngine.java:553)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$7.setClassnameAndId(PartRenderingEngine.java:1320)
at org.eclipse.e4.ui.workbench.renderers.swt.SWTPartRenderer.setCSSInfo(SWTPartRenderer.java:123)
at org.eclipse.e4.ui.workbench.renderers.swt.WBWRenderer.updateNonFocusState(WBWRenderer.java:616)
at org.eclipse.e4.ui.workbench.renderers.swt.WBWRenderer.lambda$6(WBWRenderer.java:589)
at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:89)
at org.eclipse.swt.widgets.Display.sendEvent(Display.java:4251)
at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1066)
at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1090)
at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1071)
at org.eclipse.swt.widgets.Decorations.WM_ACTIVATE(Decorations.java:1533)
at org.eclipse.swt.widgets.Shell.WM_ACTIVATE(Shell.java:2314)
at org.eclipse.swt.widgets.Control.windowProc(Control.java:4743)
at org.eclipse.swt.widgets.Canvas.windowProc(Canvas.java:340)
at org.eclipse.swt.widgets.Decorations.windowProc(Decorations.java:1480)
at org.eclipse.swt.widgets.Shell.windowProc(Shell.java:2286)
at org.eclipse.swt.widgets.Display.windowProc(Display.java:5026)
at org.eclipse.swt.internal.win32.OS.DefWindowProc(Native Method)
at org.eclipse.swt.widgets.Shell.callWindowProc(Shell.java:508)
at org.eclipse.swt.widgets.Control.windowProc(Control.java:4847)
at org.eclipse.swt.widgets.Canvas.windowProc(Canvas.java:340)
at org.eclipse.swt.widgets.Decorations.windowProc(Decorations.java:1480)
at org.eclipse.swt.widgets.Shell.windowProc(Shell.java:2286)
at org.eclipse.swt.widgets.Display.windowProc(Display.java:5034)
at org.eclipse.swt.internal.win32.OS.DispatchMessage(Native Method)
at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3643)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$5.run(PartRenderingEngine.java:1155)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:1046)
at org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:155)
at org.eclipse.ui.internal.Workbench.lambda$3(Workbench.java:644)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:551)
at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:156)
at org.knime.product.rcp.KNIMEApplication.start(KNIMEApplication.java:191)
at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:203)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:136)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:104)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:402)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:255)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.base/java.lang.reflect.Method.invoke(Unknown Source)
at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:659)
at org.eclipse.equinox.launcher.Main.basicRun(Main.java:596)
at org.eclipse.equinox.launcher.Main.run(Main.java:1467)

[mlauber71]

@chaithuj my suggestions would be to actually read what I said and also to keep the forum readable by posting logs as attachments.

[chaithuj]

Hi,

I have read thru the Article and FAQ’s you shared and made all these changes

Knime Version : 4.7.4

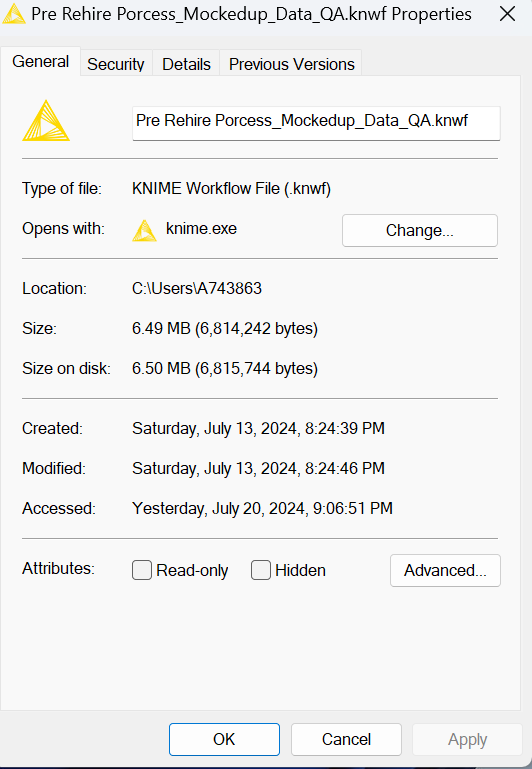

The workflow size when copied to a file is : 6655 KB

The Tech spec of my laptop :
RAM : 32.0 GB (31.7 GB usable)
Processor : 12th Gen Intel(R) Core™ i7-1265U 1.80 GHz
System Type : 64-bit operating system, x64-based processor
Edition :Windows 11 Enterprise

The changes I made following the suggestions:

i)Created a workspace with just this one program and no other applications running on my Laptop

ii)
–add-opens=java.base/sun.net.www.protocol.http=ALL-UNNAMED
-Xmx16217m
Increased this to 24GB as below
–add-opens=java.base/sun.net.www.protocol.http=ALL-UNNAMED
-Xmx24217m -

iii) -Dknime.table.cache=SMALL
iv) -Dorg.knime.container.cellsinmemory=100000

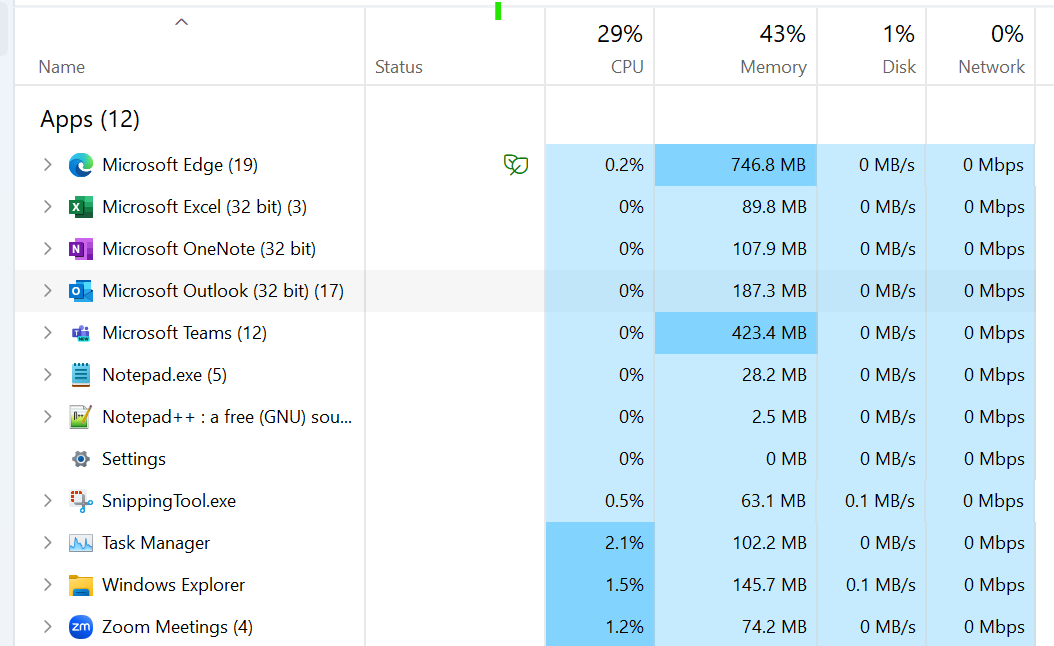

when hanging the memory utilization is at
and get the error " [SWT No More Handles]

Can you please help me what does “No more handles mean”
Is there a way we can increase the number of handles or prevent this error
What exactly is needed to get more handles , as i have shared my laptop config details, can you please suggest me

knime - Copy.log (160.5 KB)

Attached is my Log file
Regards
Chaitanya
Log.txt (252.4 KB)

[mlauber71]

@chaithuj thank you for the additional details. These things come to mind:

• the workflow seems to run in a one Drive environment. That might cause problems. Maybe try just a folder on the machine without sync
• check the DB/Oracle drivers and their use in the workflow. That there will not be a timeout and if they would constantly reconnect in a loop or something. Maybe best initiated them once when they are needed
• what kind of constant value is being assigned? Can you use a column expression at this point. Also maybe do the setting of the constant value in a row instead of at the same time off this is the case

Next idea couls be to try knime 5.3 if that is possible and also check for aggressive virus scanners.
