Table to HTML String Bug

Community Extensions
,
1

I have found there is bug in Node “Table to HTML String”

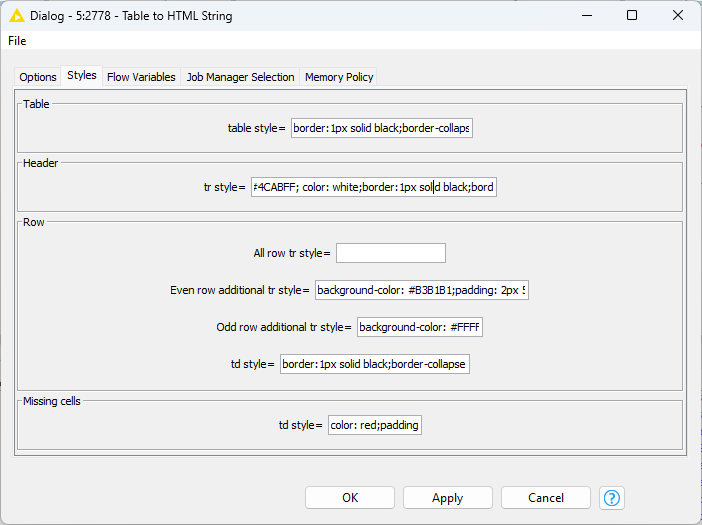

There is configuration for the “Header” style, but the output HTML Sting use “tr style”. I think there should be a “th style”?

image702×525 14.1 KB

image1375×597 18 KB

2

Hi @cuimaple,

I do not think this is a bug — in HTML, a <table> can have multiple header cells in a single row, and that’s why multiple <th> elements are placed inside one <tr> (table row). Each <th> represents a column header.

So the structure:

<tr>
  <th>Column 1</th>
  <th>Column 2</th>
  ...
</tr>

is completely valid and standard. The <tr> wraps the row, and each <th> defines a header cell for each column in that row.

Let me know if you have other questions.

Best,
Keerthan

1 Like
3

but the header style input in node setting is not valid for the header when show in email

4

I was able to get the required table structure and styling for the table using this simple workflow.

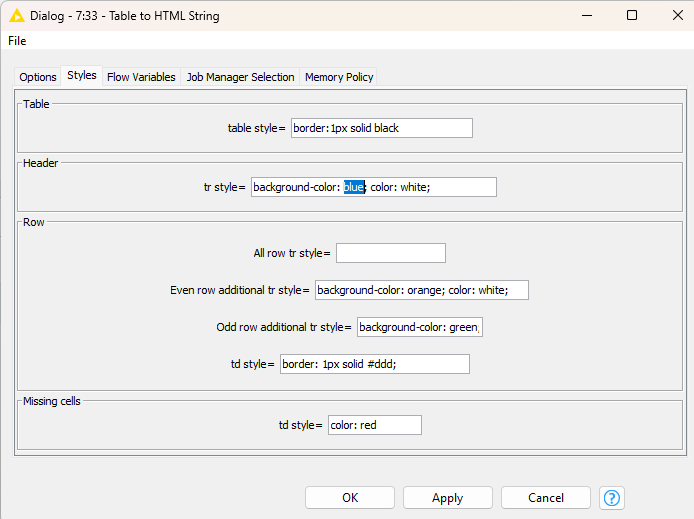

Here is the configuration:

image694×519 13.2 KB

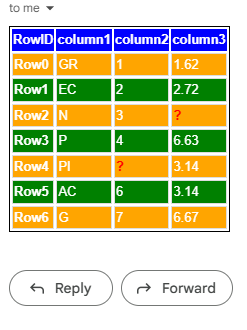

Here is the email I received:

Hope this helps.

Best,
Keerthan

2 Likes
5

When I am trying to change the border style, input in “tr style”, it didn’t work. The border style for each cell in header is not working.
The input is: background-color: #4CABFF; color: white;border:1px solid black;border-collapse: collapse;cellspacing: 0px;padding: 2px 5px 2px 5px;

image702×525 14.2 KB

image704×197 12.1 KB

6

Thanks, and sorry — now the issue is clear.

The Table to HTML String node doesn’t currently allow you to pass styles directly to <th> elements, which is why the header borders aren’t showing up. One workaround is to use a small CSS stylesheet.

Here’s what worked for me:

CSS Stylesheet

      th {
        border:1px solid black;
        border-collapse: collapse;
        cellspacing: 0px;
        padding: 2px 5px 2px 5px;
      }

And then wrap the content using:

<html>
  <head>
    <style>
      $${Scss-stylesheet}$$
    </style>
  </head>
  <body>
    $${Shtml-content}$$
  </body>
</html>

I have updated the workflow here.

Best,
Keerthan

2 Likes
8

Will this be considered as an improvement, create a field for <th> style in the future?

9

Thanks for the suggestion! I’ve moved this topic into the Community Extension category. Maybe @swebb can provide you an update on that.

1 Like
10

This shouldn’t be complicated to do. I have added a ticket to the backlog to update the node to allow you to specify th element styles.

3 Likes
