transforming columns with string scale to integer scale

[DinahA.Koehler4]

ow to transform multiple columns with a string value (very high to very low) into new columns with integers

[mwiegand]

Hi @DinahA.Koehler4,

did you tried the String to Number node?

String to Number

Best, Mike
CTO @ DataNautics GmbH - Your KNIME-Experts
Contact: info@datanautics.gmbh // datanautics.gmbh // +49(0)170-325 713 9 // Linkedin
Daten Automatisierung für Finanz-, Produktion-, IT- und Marketing-Prozesse mit KNIME

[DinahA.Koehler4]

I need to change several string columns with 5 levels (very high, high, medium, low, very low) to integer levels 5 - 1. It would be the same operation on about 15 columns in one data file.

[mwiegand]

Noting easier than that.

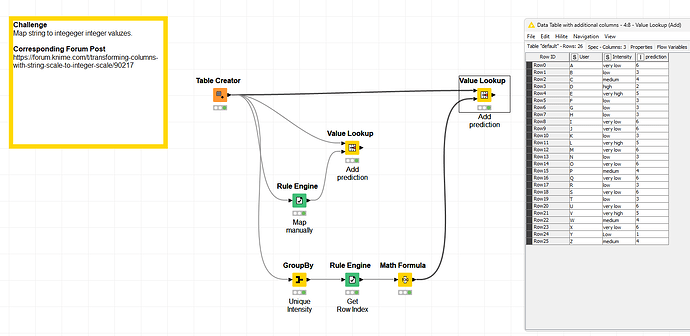

• Option 1: Manually classify using Rule Engine
• Option 2: Dynamically assign by levaring automatic order of values

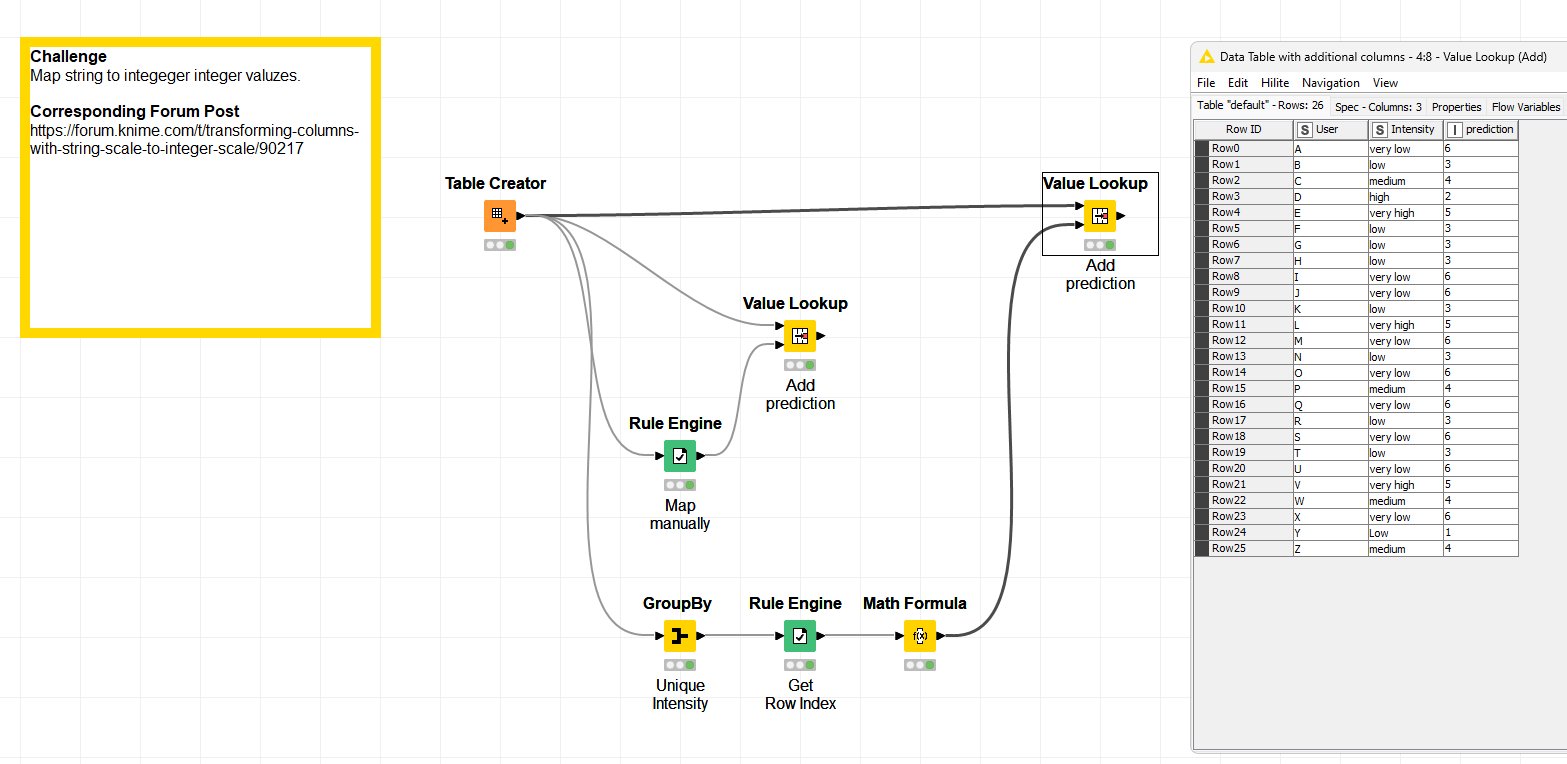

Here is the solution:

90217 - Dynamically Convert Stirng to Integer – mwiegand

If that works for you, please mark this post as the solution.

Best, Mike
CTO @ DataNautics GmbH - Your KNIME-Experts
Contact: info@datanautics.gmbh // datanautics.gmbh // +49(0)170-325 713 9 // Linkedin
Daten Automatisierung für Finanz-, Produktion-, IT- und Marketing-Prozesse mit KNIME

[rfeigel]

It would be easier to help if you could supply some sample data.

[DinahA.Koehler4]

I have successfully used this code in the Rule Engine Node to transform my string data into a number for a single column and am trying to do this in the String Manipulation (multi column) node, without success:
$$CURRENTCOLUMN$$ = “Very high” => 5
$$CURRENTCOLUMN$$ = “High” => 4
$$CURRENTCOLUMN$$ = “Medium” => 3
$$CURRENTCOLUMN$$ = “Low” => 2
$$CURRENTCOLUMN$$ = “Very Low” => 1

[rfeigel]

As the name implies, the String Manipulation node is not intended to apply rules. Its use is to manipulate strings. As I asked earlier, could you please supply some sample data.

[ActionAndi]

Please check the solutions provided by @mwiegand . They offer everything that is needed to solve the problem

[takbb]

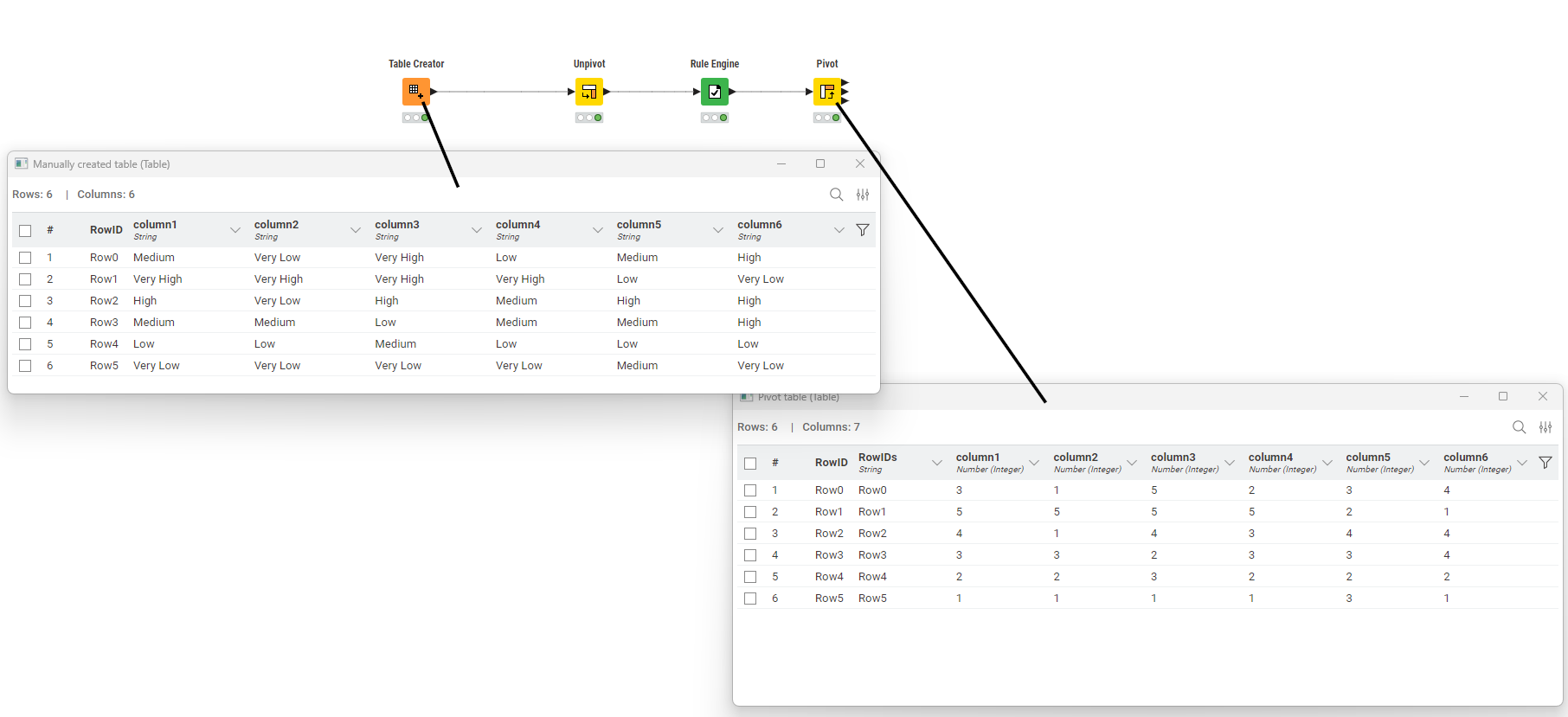

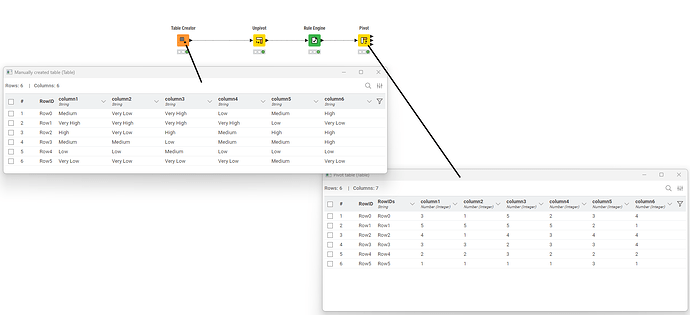

Hi @DinahA.Koehler4 , one method of applying the Rule Engine to multiple columns is to place it between Unpivot and Pivot nodes,

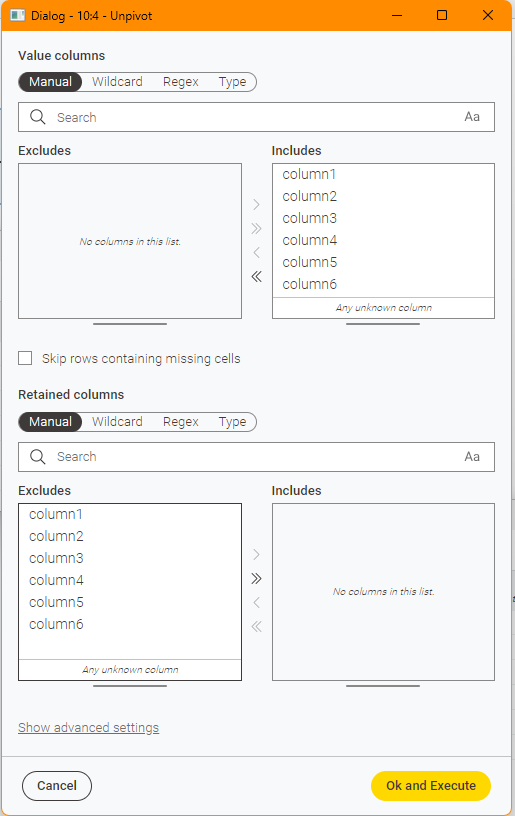

The Unpivot node is set to include all the columns that are to be acted on by the Rule Engine as “Value” columns. If there are other columns that aren’t involved in the Rule Engine, you would include these in “Retained” columns

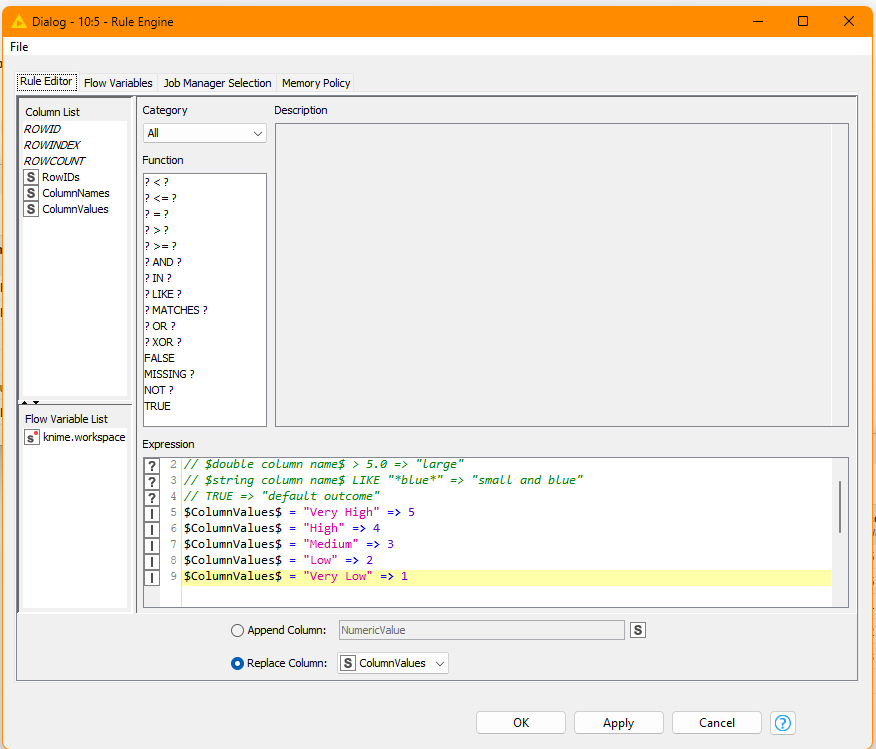

The Rule Engine then acts on the ColumnValues column that is output from the Unpivot

Finally the Pivot node returns the modified version of the table.

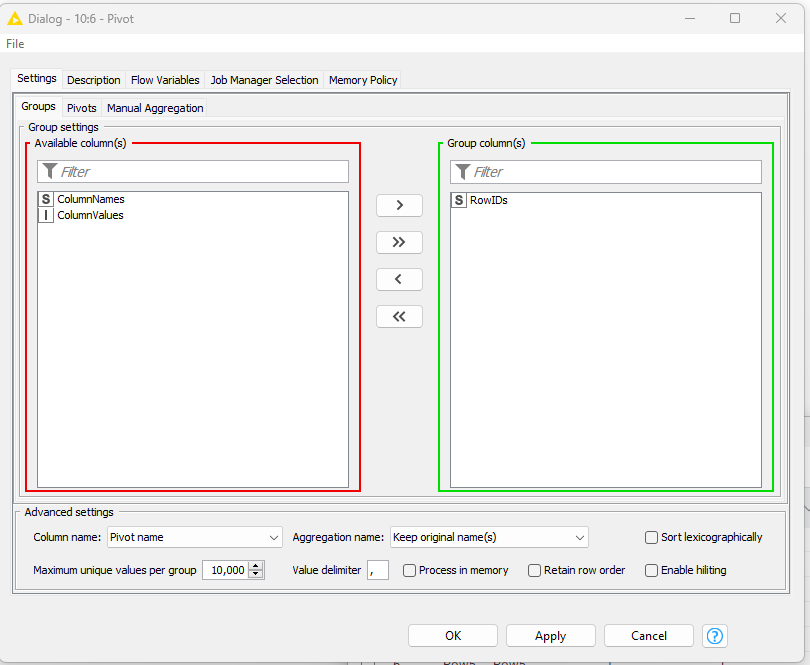

Set the Groups as any columns that were “retained”, but RowIDs can work by itself if there were no other columns

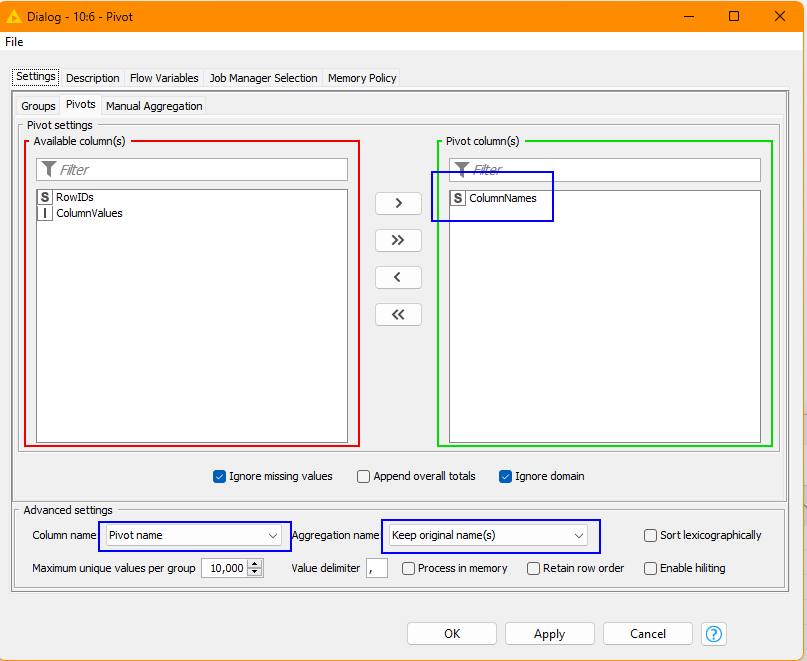

For Pivots, set this to “ColumnNames”
and specify the other settings marked in blue squares here:

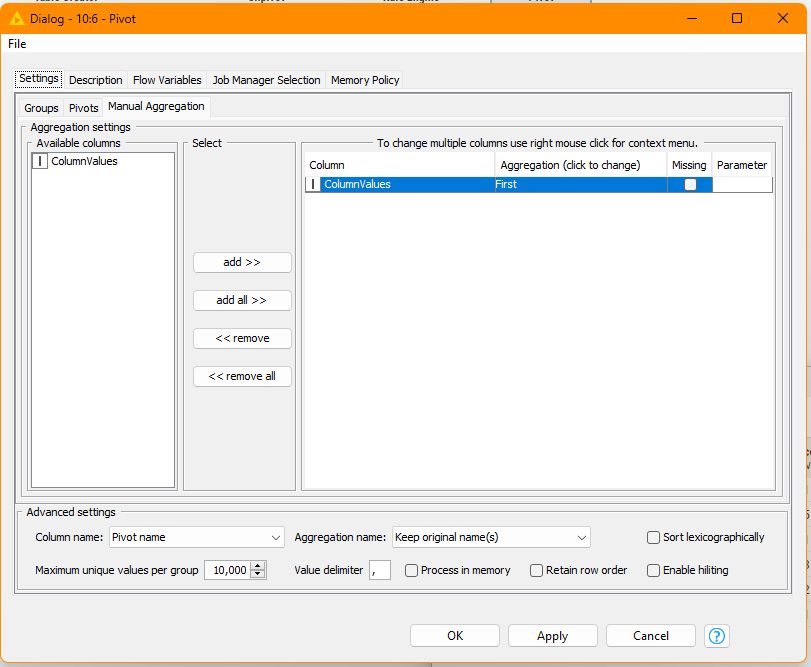

and finally, for Manual Aggregation set it as follows, collecting “First” for ColumnValues

If you need to append the resultant table back on to the original, then Column Appender or Joiner should be able to achieve this.

—

As @rfiegel mentioned, the String Manipulation node is not designed for evaluating rules. However… there is an alternative “hack” method using String Manipulation (Multi Column) that would work in this situation:

toInt(
 $$CURRENTCOLUMN$$.equals(“Very High”)?5
:$$CURRENTCOLUMN$$.equals(“High”)?4
:$$CURRENTCOLUMN$$.equals(“Medium”)?3
:$$CURRENTCOLUMN$$.equals(“Low”)?2
:$$CURRENTCOLUMN$$.equals(“Very Low”)?1
:0)

I don’t think you will find that in any official documentation.

You will find my post on String Manipulation “hacks” here:

Fun with String Manipulation's "undocumented features"

For a while now I’ve been using various features of String Manipulation that you won’t generally find documented. I guess therefore, that what I am writing here should be given the caveat “use at your own risk” since it is always possible that in the future, the String Manipulation (and its “(variable)” counterpart node) could be rewritten and the undocumented features would no longer work. However, since it sits on top of java, and these features make use of its close relationship with java, i…

and more specifically, related to conditions, here:

IF, OR, AND Statement Rule Engine

Just for the excitement of having yet another option ;-)… if you really want to, you can do nested if statements within String Manipulation too. It’s hidden away, but it’s there: e.g. string( $column1$.equals("Y") ?"Some result" :$column2$.equals("Y") && $column3$.equals("N") ?"A different result" :$column2$.equals("Y") ?"Yet another result" :"Bored now!" ) The syntax is condition ? result if true : result if false and as you can see, you can nest the conditions. It’s…

[DinahA.Koehler4]

Heat Stress baseline	Heat stress 2030 RCP2.6	Heat stress 2030 RCP 4.5
High	High	High
Medium	Medium	Medium
Medium	Medium	Medium
Medium	Medium	Medium
Very High	Very High	Very High
Medium	Medium	Medium
Medium	Medium	Medium
Medium	Medium	Medium
Medium	Medium	Medium
Medium	Medium	Medium
High	High	High
Medium	Medium	Medium
Medium	Medium	Medium
Medium	Medium	Medium
Medium	Medium	Medium
High	High	High
Medium	Medium	Medium
High	High	High

As I am new to Knime (but familiar with programming in SAS) I am having a hard time understanding what “manually classify using Rule Engine” means. It would help to see a screen shot of the Dialog view of the rule engine and the Value lookup so I can replicate it.

[takbb]

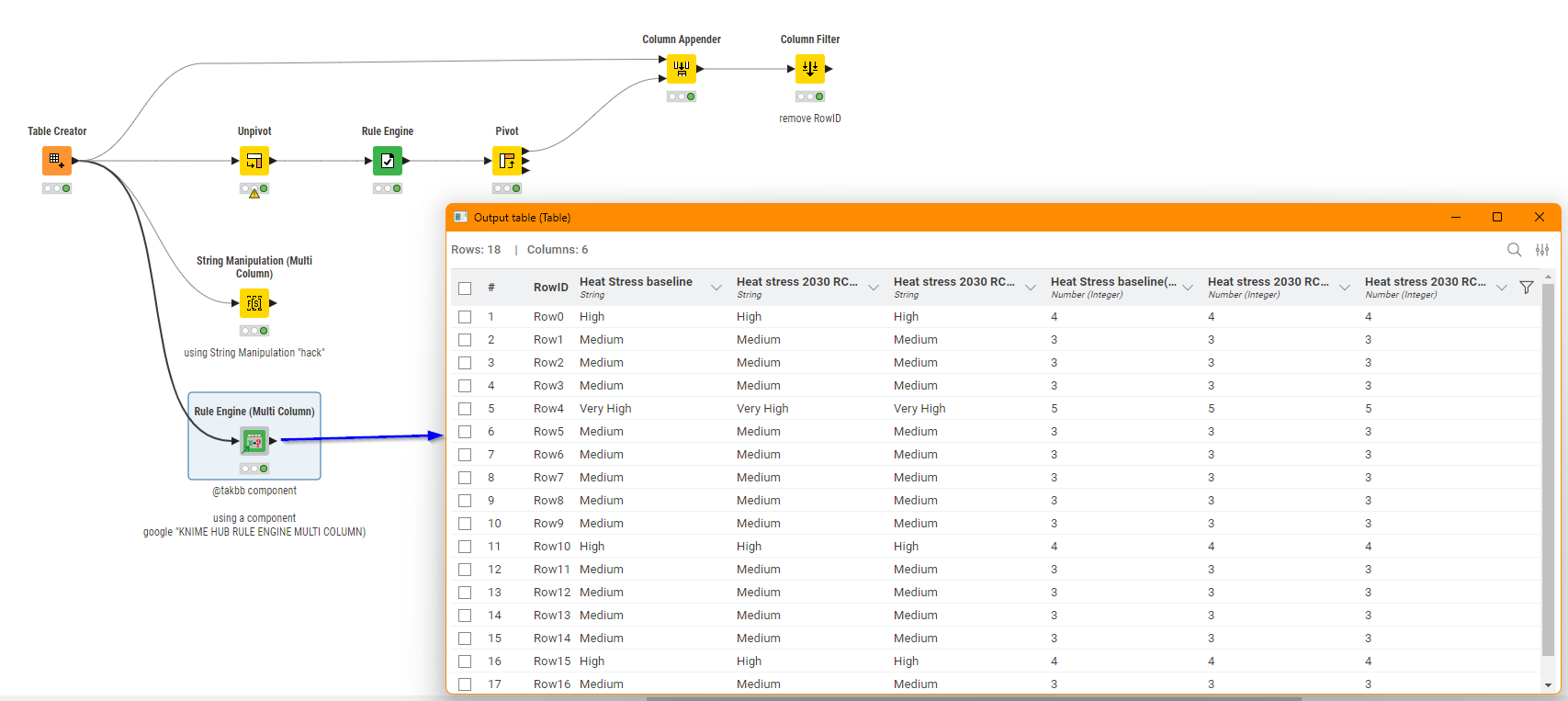

I’ve attached a workflow using your data

Apply Multi Column Rules - takbb.knwf (3.4 MB)

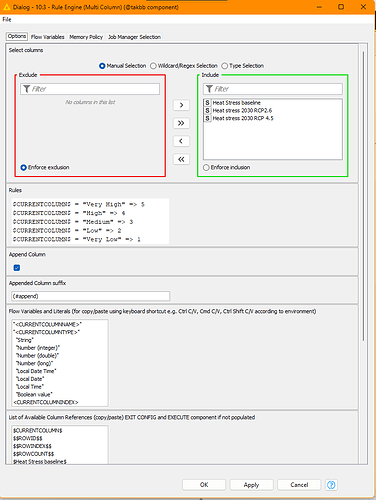

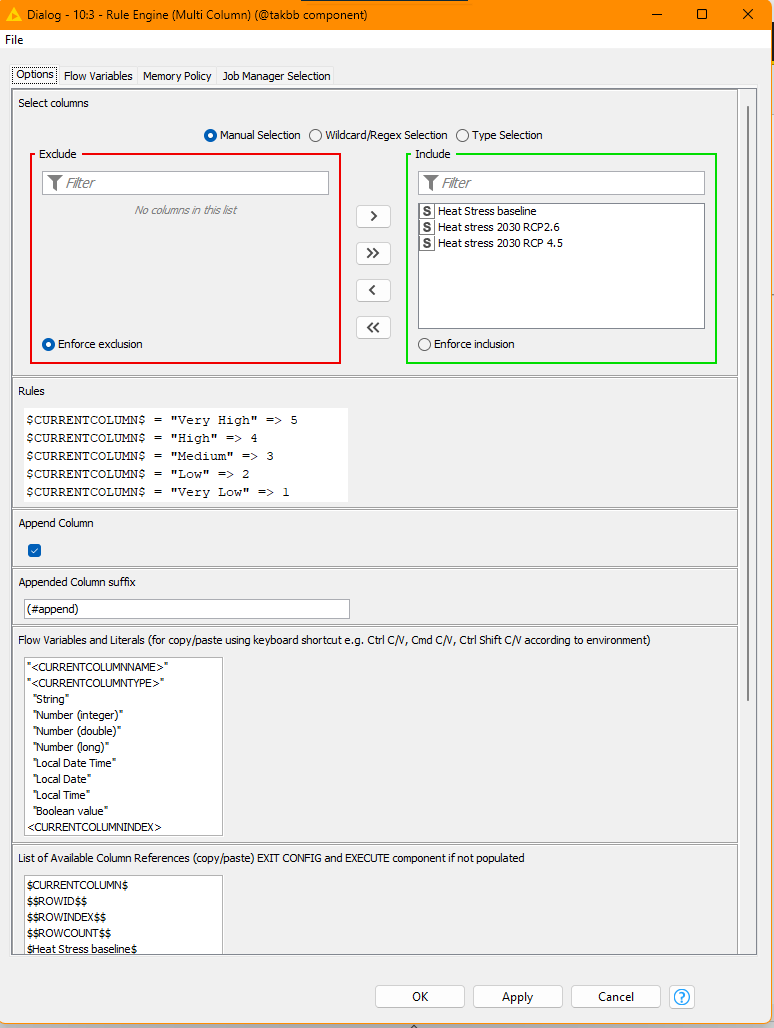

As well as the suggestions I mentioned earlier for dealing with rules applied to multiple columns, I have also included an example of using my “Rule Engine (Multi Column)” component which provides the functionality I would like to have seen made available as a standard node!

It pretty much provides the functionality you mentioned earlier:

$CURRENTCOLUMN$ = “Very High” => 5
$CURRENTCOLUMN$ = “High” => 4
$CURRENTCOLUMN$ = “Medium” => 3
$CURRENTCOLUMN$ = “Low” => 2
$CURRENTCOLUMN$ = “Very Low” => 1

The component is available from here:

Rule Engine (Multi Column) – takbb

It’s worth noting though that by its nature the component will be considerably slower on larger datasets than the other methods given, as it is quite complicated: behind the scenes it is doing a lot of work to actually turn the supplied script into something usable by the standard Rule Engine, within a recursive loop, and also attempt to automatically handle changing datatypes that may be returned.

[DinahA.Koehler4]

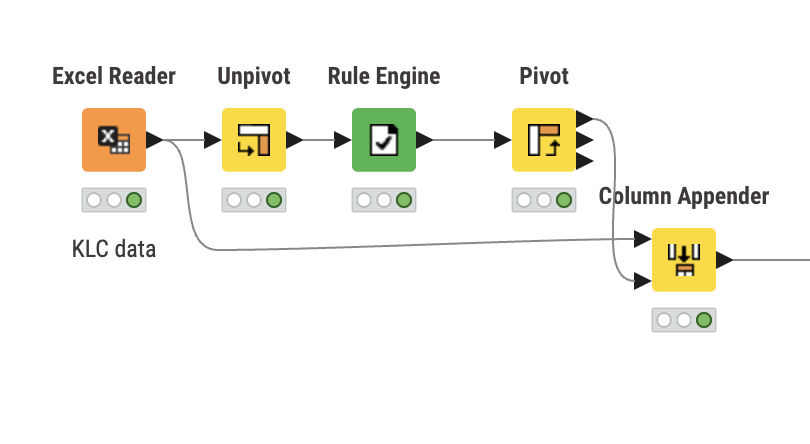

thanks everyone for the help! I have used the pivot option followed by a column appender
