Hi,
I had a working SDK with KNIME nightly until yesterday. Then, I got weird errors when starting KNIME. I decided to throw away my Eclipse workspace, I checked out releases/SDK from the knime SDK repo, created a fresh Eclipse workspace and set the target platform (complete target) accordingly. (Eclipse and Java versions do fit for KNIME 5.9).

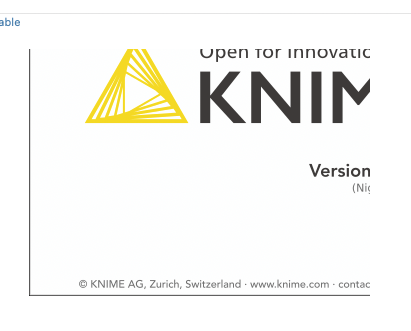

When starting KNIME, the splash screen already looks weird.

Screenshot 2025-12-02 at 09.50.27
Screenshot 2025-12-02 at 09.50.27411×331 24.8 KB

Additionally, I get this error message:

WARNING: Using incubator modules: jdk.incubator.vector
---Registering Weka Editors---
ERROR	 Node Repository Initializer FuzzyClusterNodeFactory	 CODING PROBLEM	Missing description for input port 1
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	Node description of 'Moving Average' does not conform to the Schema. Violations follow.
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
ERROR	 Node Repository Initializer NodeDescription53Proxy	 CODING PROBLEM	error: cvc-complex-type.2.4a: Expected elements 'a@http://knime.org/node/v5.3 b@http://knime.org/node/v5.3 i@http://knime.org/node/v5.3 u@http://knime.org/node/v5.3 tt@http://knime.org/node/v5.3 s@http://knime.org/node/v5.3 em@http://knime.org/node/v5.3 code@http://knime.org/node/v5.3 samp@http://knime.org/node/v5.3 sup@http://knime.org/node/v5.3 sub@http://knime.org/node/v5.3 br@http://knime.org/node/v5.3 ul@http://knime.org/node/v5.3 ol@http://knime.org/node/v5.3 dl@http://knime.org/node/v5.3' instead of 'pre@http://knime.org/node/v5.3' here in element li@http://knime.org/node/v5.3
WARN 	 Node Repository Initializer NodeFactoryProvider	 Problem with node extension "KNIME POI (Excel) Plug-in". Some nodes might not be available. Please contact the vendor of the extension.
java.lang.NoSuchMethodError: 'void org.knime.filehandling.core.node.table.reader.TableReaderNodeModel.<init>(org.knime.filehandling.core.node.table.reader.config.StorableMultiTableReadConfig, org.knime.filehandling.core.node.table.reader.paths.SourceSettings, org.knime.filehandling.core.node.table.reader.MultiTableReader, org.knime.core.node.context.ports.PortsConfiguration)'
	at org.knime.ext.poi3.node.io.filehandling.excel.reader.ExcelTableReaderNodeModel.<init>(ExcelTableReaderNodeModel.java:100)
	at org.knime.ext.poi3.node.io.filehandling.excel.reader.ExcelTableReaderNodeFactory.createNodeModel(ExcelTableReaderNodeFactory.java:98)
	at org.knime.ext.poi3.node.io.filehandling.excel.reader.ExcelTableReaderNodeFactory.createNodeModel(ExcelTableReaderNodeFactory.java:1)
	at org.knime.filehandling.core.node.table.reader.CommonTableReaderNodeFactory.createNodeModel(CommonTableReaderNodeFactory.java:1)
	at org.knime.core.node.NodeFactory.callCreateNodeModel(NodeFactory.java:569)
	at org.knime.core.node.Node.<init>(Node.java:307)
	at org.knime.core.node.Node.<init>(Node.java:279)
	at org.knime.core.node.extension.NodeSpec.of(NodeSpec.java:123)
	at org.knime.core.node.extension.NodeSpec.of(NodeSpec.java:186)
	at org.knime.core.node.extension.NodeSpecCache$Initializer.computeNodeSpecIgnoringErrors(NodeSpecCache.java:190)
	at java.base/java.util.stream.ReferencePipeline$7$1.accept(ReferencePipeline.java:273)
	at java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1708)
	at java.base/java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:509)
	at java.base/java.util.stream.AbstractPipeline.wrapAndCopyInto(AbstractPipeline.java:499)
	at java.base/java.util.stream.ForEachOps$ForEachOp.evaluateSequential(ForEachOps.java:151)
	at java.base/java.util.stream.ForEachOps$ForEachOp$OfRef.evaluateSequential(ForEachOps.java:174)
	at java.base/java.util.stream.AbstractPipeline.evaluate(AbstractPipeline.java:234)
	at java.base/java.util.stream.ReferencePipeline.forEach(ReferencePipeline.java:596)
	at org.knime.core.node.extension.NodeSpecCache$Initializer.run(NodeSpecCache.java:168)
	at java.base/java.lang.Thread.run(Thread.java:1583)

and after closing KNIME:

CoreSVG has logged an error. Set environment variabe "CORESVG_VERBOSE" to learn more.

I would appreciated any idea how to troubleshoot this problem. I am on MacOS 14.8.2 (23J126) / M2 (got an update yesterday morning…)
